When Good Isn't Good Enough

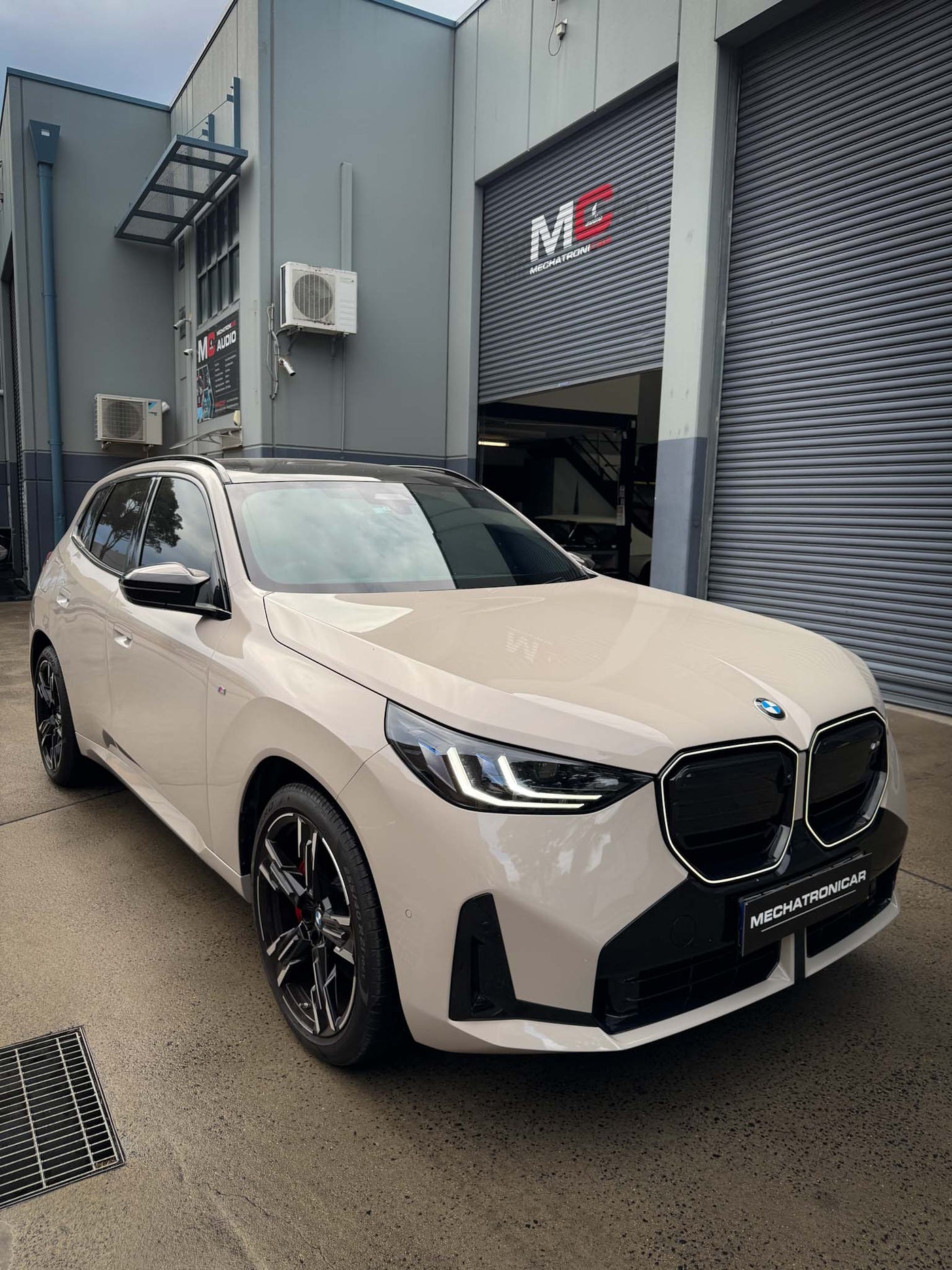

The owner of this stunning BMW X3 M50 2025 equipped with the factory Harman Kardon 16-speaker sound system first approached us with a very specific goal.
He had experienced the Premium Sound System in his Tesla and wanted to achieve a similar level of clarity, power, staging and musical immersion in his BMW.
On paper, the Harman Kardon system appears impressive. BMW advertises 16 speakers, multiple channels and dedicated bass drivers. However, after spending time with the vehicle, it became clear that the system lacked the authority, dynamics and low-frequency impact expected from a premium audio experience.
This wasn't a quick project.
Michael visited our workshop several times. We discussed different upgrade paths, performed multiple inspections, analysed the factory system in detail and developed several possible solutions.
Initially, our recommendation was to install an 8-channel DSP amplifier focused primarily on improving the front sound stage. Since the vehicle is only used occasionally when Michael visits Australia, he wanted a solution that would deliver exceptional performance while maintaining complete OEM functionality.
What followed became one of the most technically challenging BMW audio integrations we've completed to date.
The Challenge: A Completely New BMW Audio Architecture
Our original plan seemed straightforward.
We sourced what was supposed to be the correct plug-and-play harness for the vehicle and began preparations for the installation.
Unfortunately, nothing worked as expected.
Although the harness physically connected to the factory amplifier, many of the speaker outputs and signal paths did not correspond to any previous BMW platform we had encountered.
For almost two full days we had to reverse-engineer the entire audio system. Every speaker had to be identified individually, every polarity had to be verified, every channel had to be traced, every signal path had to be mapped.
The BMW X3 M50 Harman Kardon system contains 16 speakers, but the way the factory amplifier distributes frequencies and channels makes the system appear much simpler at first glance.
Helix CI5 Shallow subwoofers The front bass drivers, despite being present, lacked the output and authority expected from a vehicle of this calibre. At that point, Michael and our team agreed that an 8-channel solution would no longer achieve the desired result, It was time to take the project to the next level.
Upgrading to the HELIX V TWELVE DSP MK2
After extensive planning, we decided to build the system around one of the most advanced amplifiers available today:
HELIX V TWELVE DSP MK2
- 12 amplifier channels
- 14-channel DSP processor
- Audiophile-grade signal processing
- Advanced time alignment
- 30-band equalisation
- Fully custom tuning capabilities
The objective was ambitious.
We wanted to create two separate sound profiles:
Profile 1
Maintain operation of all 16 factory speakers while dramatically improving performance and tuning.
Profile 2
Operate only the channels controlled directly by the HELIX amplifier for a more focused audiophile listening experience.
This flexibility would allow Michael to switch between different listening experiences depending on his preference.
Designing a Fully Reversible Plug & Play Solution
One of our non-negotiable requirements at MC Audio is preserving OEM integrity.
- No factory wiring was cut.
- No permanent modifications were made.
- No factory modules were relocated.
To achieve this, we spent another four days designing and manufacturing a completely custom plug-and-play harness.
The final result is 100% reversible and can be returned to factory condition at any time.
Custom Amplifier Mounting
The HELIX V TWELVE DSP MK2 is a serious amplifier.
Its physical size alone creates installation challenges in modern vehicles.
Rather than compromising luggage space or creating visible modifications, we designed a custom mounting plate allowing the amplifier to be installed directly behind the factory amplifier location. The result looks almost factory engineered. If you didn't know it was added later, you would assume BMW designed it that way from the beginning.
Adding More Bass Authority
During testing we discovered another opportunity.
Traditionally, many of our BMW upgrades utilise MATCH subwoofers due to their exceptional OEM integration.
For this project, however, we wanted more output and greater dynamic capability.
The final choice was:
HELIX Ci5 S200FM-D2 - 8" FlexMount Subwoofer Pair
These shallow-mount woofers provide:
- Greater power handling
- Improved low-frequency extension
- Stronger mid-bass impact
- Superior integration with the HELIX amplifier platform
The combination of HELIX amplification and HELIX subwoofers delivered exactly the result we were chasing.
To give Michael instant control over bass levels, we also installed a HELIX URC.1 remote controller, allowing him to adjust low-frequency output directly from the driver's seat.
The Tuning Process
Hardware installation was only half the project.
We dedicated an entire day exclusively to DSP tuning.
- Every speaker was measured.
- Every crossover point was optimised.
- Every delay was adjusted.
- Every frequency response curve was refined.
The goal wasn't simply louder sound,the goal was realism.
A soundstage that extends across the dashboard. Vocals positioned naturally in front of the listener, tight, controlled bass, detail without harshness and power without distortion.
The Result
The moment Michael entered the vehicle and heard the BMW welcome chime through the newly upgraded system, he smiled.
That was the confirmation we were looking for.
Before a single song played, he knew we had achieved something special.
From that point onward, every reaction was positive.
The vehicle now delivers:
- ✔ Significantly improved clarity
- ✔ Stronger and deeper bass response
- ✔ Better instrument separation
- ✔ Improved front sound stage
- ✔ More dynamic and engaging listening experience
- ✔ Complete OEM functionality
- ✔ Fully reversible installation
What's Next?
During the final listening session, another opportunity became obvious.
The factory Harman Kardon speakers are now the limiting factor of the system.
The HELIX V TWELVE DSP MK2 has revealed capabilities the original speakers simply cannot fully reproduce.
For this reason, Michael has already scheduled the next stage of the project.
In approximately two months, we'll be upgrading the vehicle with HELIX Ci7 speakers throughout the front stage to unlock the full potential of the system.
Once completed, we'll publish a follow-up article showcasing the transformation and final performance results.
Stay tuned.
