One Volkswagen Multivan. One week of precision installation. A complete transformation in cabin comfort, sound quality and everyday practicality.
The Volkswagen T6.1 Multivan is built for versatility. Whether it's daily commuting, family road trips or weekend camping adventures across Australia, it offers an excellent combination of space, comfort and practicality.
However, like many large vans, the T6.1 has two areas where carefully selected upgrades can make a significant difference: cabin noise and factory audio performance.

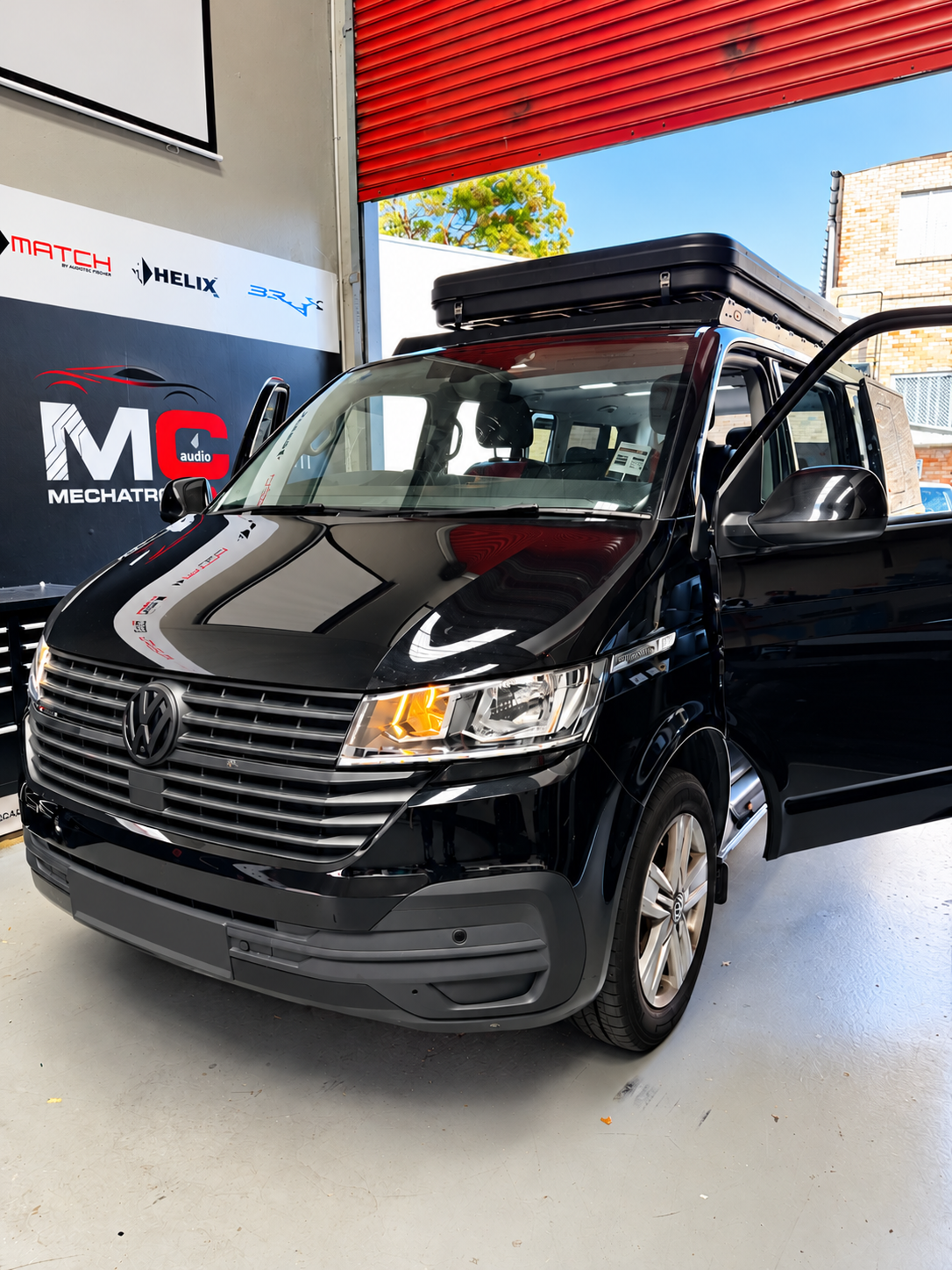

At MC Audio Sydney, we recently completed a comprehensive Volkswagen Multivan project combining extensive multi-layer acoustic treatment, HELIX COMPOSE Ci3 speakers, a MATCH UP 6DSP amplifier and a vehicle-specific HELIX 10-inch sealed subwoofer enclosure.
We also incorporated auxiliary battery wiring preparation to support the owner's future camping accessories.
The project took approximately one full week, with particular attention to acoustic treatment, component integration, cable management and maintaining the vehicle's original practicality.
The Project: More Than Just a Speaker Upgrade
When Chris first contacted MC Audio, his main priority was improving the driving experience inside his Volkswagen Multivan.
He wanted to reduce road noise, improve cabin comfort and upgrade the factory speakers without compromising the space and versatility that make the Multivan such a practical vehicle.
He was also planning a leisure battery system for camping, with future accessories including a portable fridge, LED lighting and charging equipment.
Rather than approaching each modification separately, we planned the work as one integrated project.
Our objectives were straightforward:
- Reduce vibration and road noise throughout the cabin.
- Improve acoustic and thermal insulation.
- Replace the factory front speakers with premium HELIX components.
- Introduce dedicated DSP amplification and precise audio tuning.
- Add controlled, powerful bass without unnecessarily sacrificing interior space.
- Prepare electrical wiring for future camping accessories.
- Preserve the factory appearance and everyday functionality.
The result was a carefully planned upgrade designed around how the owner actually uses the vehicle.
Stage 1: Multi-Layer Sound Deadening and Acoustic Treatment
One of the most important aspects of this project was the acoustic treatment.
The Volkswagen T6.1 has a large interior cabin, extensive metal body panels and multiple areas where vibrations and external noise can influence the driving experience.
Tyre noise, road texture, body-panel resonance and environmental noise can all contribute to a less refined interior.
Simply replacing the speakers does not address these issues.
For this installation, we focused on treating the structure of the vehicle before completing the audio upgrade.
Front Doors and Sliding Doors
The doors are particularly important because they influence both cabin noise and speaker performance.
Factory door structures can resonate when exposed to road vibration and speaker energy, particularly at higher listening levels.
Our approach involves applying carefully selected acoustic materials to accessible metal surfaces and interior panel sections, using a multi-layer treatment strategy suited to each area.
The purpose is to reduce unwanted panel vibration, improve acoustic damping and help create a more stable environment for the upgraded speakers.
A properly treated door can make a substantial difference to midbass definition and overall listening quality.
Roof Acoustic Treatment
The Multivan's large roof is another important area for acoustic refinement.
Large metal surfaces can transmit vibration and contribute to cabin noise, particularly during highway driving or heavy rain.
We incorporated roof acoustic treatment into the project to help reduce panel resonance and improve the overall insulation of the cabin.
This process requires careful removal of interior trim components, correct material placement and meticulous reassembly.
The aim is to improve cabin comfort while maintaining the original interior finish.
Rear Side Panels and Cabin Treatment
The rear passenger compartment was another major focus.
With its large interior volume and extensive side-panel surfaces, the Multivan can benefit from acoustic treatment beyond the front doors.
We applied acoustic treatment to the rear side sections to help control resonance and reduce noise transmission into the passenger compartment.
The work was designed to complement the front door and roof treatment, creating a more consistent acoustic environment throughout the vehicle.
For owners who regularly travel long distances, improving overall cabin refinement can make the driving experience more enjoyable.
Why We Did Not Include Floor Sound Deadening
During the planning stage, we also discussed treating the entire floor.
Although floor acoustic treatment can provide additional benefits, it requires considerably more dismantling and labour.
For this particular project, the owner decided to prioritise the doors, roof and rear side panels, leaving floor treatment as a potential future upgrade.
This allowed us to concentrate on the selected areas while keeping the project aligned with the owner's budget and requirements.
Stage 2: HELIX COMPOSE Ci3 Front Speaker Upgrade
With the acoustic treatment addressed, the next stage was upgrading the factory sound system.
We selected HELIX COMPOSE Ci3 front component speakers, part of Audiotec Fischer's HELIX COMPOSE range.
The purpose was not simply to make the system louder.
We wanted improved vocal clarity, better instrument separation, stronger midbass performance and a more natural listening experience.
A component speaker system separates the reproduction of different frequencies between dedicated drivers.
The midbass speakers handle the lower and middle frequencies, while the tweeters reproduce the upper-frequency detail.
This arrangement offers greater flexibility when combined with professional digital signal processing.
The HELIX Ci3 system provides a strong foundation for an everyday vehicle where sound quality, reliability and factory-style integration are equally important.
Stage 3: MATCH UP 6DSP Amplifier – The Brain of the Audio System
One of the most significant improvements in this installation was the addition of the MATCH UP 6DSP amplifier.
While upgraded speakers provide the physical foundation for better sound, the amplifier and digital signal processor determine how effectively the system performs inside the vehicle.
The MATCH UP 6DSP combines six amplified output channels with integrated seven-channel digital signal processing.
This allows us to go beyond the limitations of basic factory audio tuning.
Why DSP Matters in a Volkswagen Multivan
Unlike a home audio system, the listening environment inside a vehicle is highly asymmetrical.
The driver sits closer to one speaker than another, and the dashboard, windows, seats and interior panels all influence the sound.
In a large vehicle such as the Multivan, these differences become particularly important.
Professional DSP calibration allows us to adjust:
- Time alignment: Compensating for differences in speaker distance to help create a more coherent soundstage.
- Equalisation: Refining the frequency response to suit the vehicle's interior acoustics.
- Crossovers: Managing which frequencies are reproduced by the speakers and subwoofer.
- Output levels: Balancing the different drivers for a controlled and natural presentation.
- System integration: Working with the original vehicle audio source while introducing dedicated amplification and processing.
The MATCH UP 6DSP features 64-bit DSP processing and flexible channel configuration, making it a versatile platform for a carefully integrated Volkswagen audio upgrade.
Compact Hardware, Serious Processing Capability
Another advantage of the MATCH UP 6DSP is its compact design.
This is particularly valuable in a Multivan, where available space is important and the owner wants to preserve the vehicle's practicality.
The amplifier provides the processing and amplification needed for a more sophisticated sound system without requiring a large conventional amplifier installation.
For this project, it formed the central control platform for the upgraded audio system.
Stage 4: HELIX IK EC10.1-DVC2 VW – Vehicle-Specific 10-Inch Subwoofer
Bass performance was another important consideration.
The owner wanted fuller, more controlled low-frequency reproduction without installing a large subwoofer enclosure that would interfere with the Multivan's usable interior space.
For this installation, we selected the HELIX IK EC10.1-DVC2 VW Multi-Trans 10-inch sealed subwoofer enclosure.
This is a vehicle-specific solution designed for Volkswagen T5 and T6 Multi-Trans applications.
Rather than relying on a large universal subwoofer box, the enclosure is designed for discreet integration into the vehicle.
HELIX IK EC10.1-DVC2 VW Specifications
- Subwoofer diameter: 10 inches / 250 mm
- RMS power handling: 300 W
- Voice coil configuration: Dual 2-ohm
- Enclosure design: Sealed
- Application: Volkswagen T5 / T6 Multi-Trans
- Design priority: Controlled bass reproduction and space-efficient integration
Why a Sealed Subwoofer?
A sealed enclosure is an excellent option when the objective is accurate, controlled bass reproduction.
It can provide tight low-frequency response that integrates naturally with the front speakers when correctly amplified and tuned.
Rather than focusing exclusively on maximum bass output, our objective was to create a balanced system that performs well across different music genres.
The HELIX subwoofer complements the Ci3 front stage by handling low-frequency information that smaller door speakers cannot reproduce as effectively.
Combined with the MATCH DSP system, the result is a more complete listening experience, with dedicated low-frequency support and improved overall balance.
Most importantly, the installation maintains the Multivan's practical character.
Explore the subwoofer used in this project:
HELIX IK EC10.1-DVC2 VW Multi-Trans 10-inch Sealed Subwoofer
Stage 5: Auxiliary Battery Wiring Preparation for Camping
This Multivan was also being prepared for future camping use.
The owner planned to use a secondary lithium battery to support accessories such as a portable refrigerator, LED camping lights and charging equipment.
To accommodate this requirement, we incorporated auxiliary battery wiring preparation into the project.
The planned arrangement placed the audio equipment and leisure battery system in separate under-seat locations.
This approach helps preserve usable cabin space while keeping the electrical systems organised.
The electrical preparation was designed around routing the necessary wiring towards the secondary battery position and providing a practical path for future accessory connections.
Correct cable sizing, circuit protection, battery charging compatibility and secure installation are essential considerations in any auxiliary battery system.
By coordinating this work with the interior dismantling required for the acoustic treatment, the project could be approached more efficiently than treating every upgrade as a completely separate installation.
The result is a more flexible foundation for future touring and camping modifications.
Stage 6: Professional DSP Calibration and Final Assembly
Installing premium equipment is only part of the process.
The final integration and tuning are equally important.
Once the audio hardware was installed, the system required configuration to suit the Volkswagen's cabin acoustics and speaker arrangement.
Using the MATCH DSP platform, the system can be calibrated to improve tonal balance, speaker integration, time alignment and subwoofer performance.
Our approach is to create a sound that remains enjoyable during everyday driving, rather than simply producing maximum volume.
The ideal result is a balanced presentation with clear vocals, defined instruments, controlled bass and a natural soundstage.
Alongside the audio work, careful interior reassembly was essential.
After extensive acoustic treatment, the panels, trims, clips and interior components must be correctly refitted to preserve the vehicle's factory appearance and functionality.
This is especially important in a Multivan, where sliding doors, seating arrangements and interior practicality are central to the vehicle's design.
[INSERT PHOTOS: Final interior assembly, completed audio installation and finished Multivan]
One Week of Installation – Why Quality Takes Time
This project took approximately one week to complete.
The timeframe reflects the scope of the work, particularly the extensive acoustic treatment and the care required when working with large interior trim sections.
A project of this nature involves multiple stages:
- Interior inspection and careful dismantling.
- Preparation of surfaces for acoustic treatment.
- Application of the selected sound deadening and insulation layers.
- HELIX speaker and subwoofer integration.
- MATCH DSP amplifier installation and electrical wiring.
- Auxiliary battery wiring preparation.
- Interior reassembly, system testing and DSP calibration.
The objective was not to rush the installation, but to complete each stage carefully while preserving the quality and practicality of the vehicle.
The Finished Volkswagen Multivan
What makes this project particularly interesting is the combination of acoustic refinement, sound quality and touring practicality.
Rather than treating the audio upgrade as an isolated modification, we approached the Multivan as a complete listening environment.
The acoustic treatment helps control unwanted vibration and external noise.
The HELIX Ci3 speakers provide an improved front soundstage.
The MATCH UP 6DSP introduces professional signal processing and dedicated amplification.
The HELIX 10-inch sealed subwoofer adds low-frequency support without the bulk of a conventional large enclosure.
And the auxiliary battery wiring preparation supports the owner's future camping plans.
Together, these modifications create a more refined, versatile and enjoyable Volkswagen Multivan.
This is exactly the type of integrated automotive technology project we specialise in at MC Audio Sydney.
