Harley-Davidson Forty-Eight Motorcycle Dashcam Installation – KENWOOD STZ-RF200WD Front & Rear Protection
A legendary motorcycle deserves modern protection without compromising its iconic design.
The Harley-Davidson Forty-Eight is more than just a motorcycle. With its unmistakable peanut-style fuel tank, muscular stance, exposed engine and minimalist bobber-inspired design, it represents the freedom and individuality that make Harley-Davidson motorcycles so recognisable.
But while the Forty-Eight delivers an unmistakable riding experience, protecting yourself and your motorcycle on Australian roads is equally important.

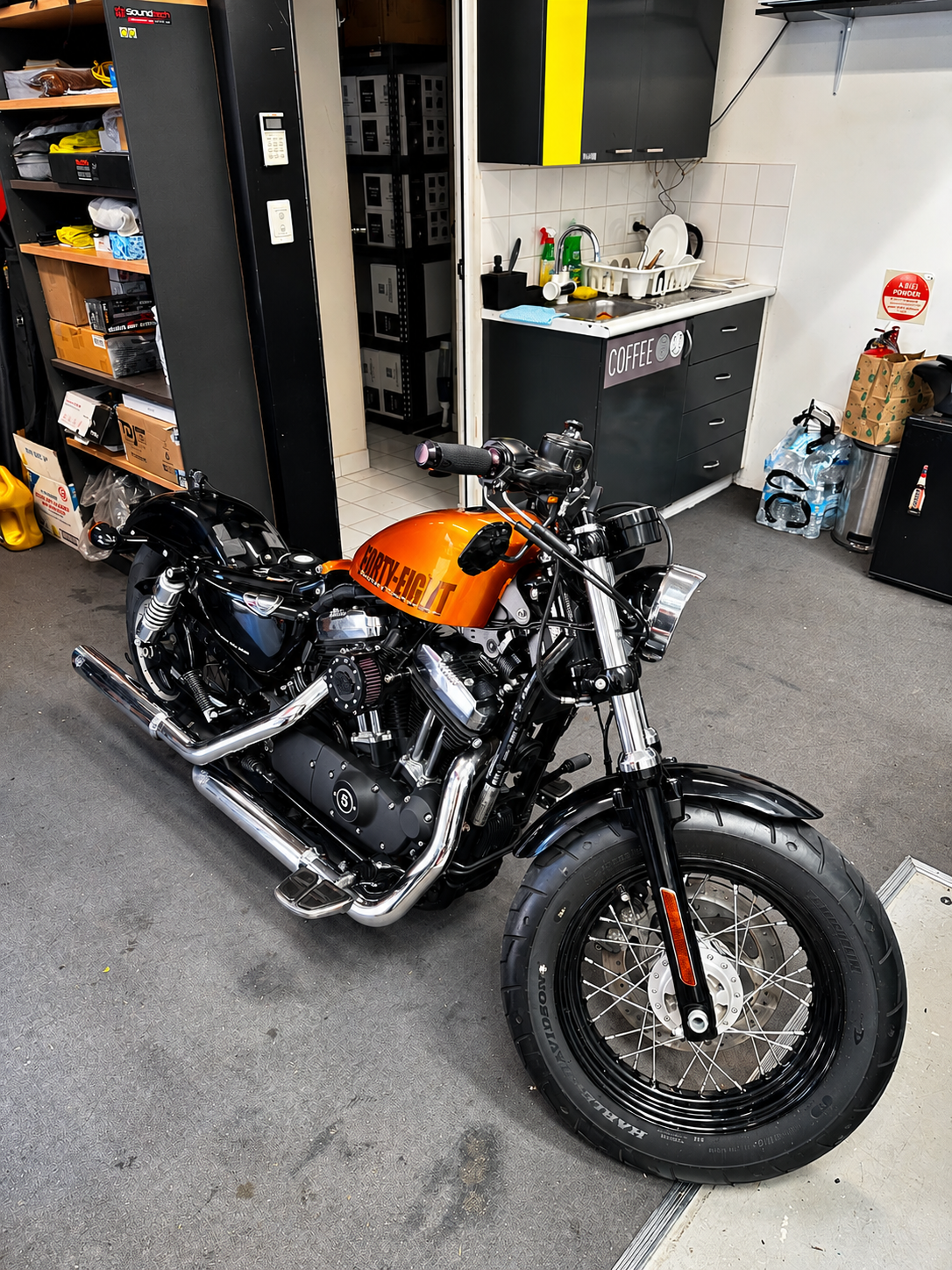

At MC Audio Sydney, we recently completed a professional motorcycle dashcam installation on this Harley-Davidson Forty-Eight, integrating a KENWOOD STZ-RF200WD Motorsports Dual Camera Recording System.
The objective was straightforward: provide reliable front and rear video recording while maintaining the motorcycle's original appearance.
Unlike installing a dashcam inside a car, a motorcycle installation requires a completely different approach. Every component is exposed to vibration, weather, heat and limited mounting space. Cable management, camera positioning and electrical integration are particularly important.
For this project, we focused on delivering a discreet, practical and properly integrated recording system.
Why Install a Dashcam on a Harley-Davidson Forty-Eight?
Motorcycle riders experience road conditions differently from car drivers.
Without the protection of a vehicle body, motorcyclists are particularly vulnerable when other road users fail to notice them. Busy intersections, sudden lane changes, vehicles following too closely and unexpected traffic situations can all create potentially dangerous circumstances.
For Harley-Davidson owners who regularly travel through Sydney or enjoy longer weekend rides across New South Wales, having video evidence can provide additional peace of mind.
A dedicated motorcycle dashcam can help document:
-
Traffic incidents and unexpected road situations.
-
Vehicles approaching from behind.
-
Dangerous overtaking or lane changes.
-
Incidents where independent video evidence may be useful.
-
Memorable rides and scenic Australian roads.
Unlike a helmet-mounted action camera that requires frequent battery charging and manual operation, a professionally hardwired motorcycle dashcam can begin recording automatically when the motorcycle's electrical system powers it.
The result is a recording system designed to work as part of the motorcycle rather than an accessory the rider needs to remember to activate.
The System: KENWOOD STZ-RF200WD Motorsports Dual Camera
For this Harley-Davidson Forty-Eight, we installed the KENWOOD STZ-RF200WD, a purpose-built motorsports camera system developed for motorcycles, ATVs, UTVs and other recreational vehicles.
The system consists of two compact cameras, a separate recording control unit, GPS antenna and a dedicated manual recording switch.
Front Camera – Recording the Road Ahead
The front-facing camera captures the road from the rider's forward perspective.
With Full HD 1920 × 1080 recording and a 195-degree diagonal lens angle, the camera provides an exceptionally wide viewing area.
This makes it useful for documenting traffic, approaching vehicles and road conditions.
The system also incorporates High Dynamic Range (HDR), helping balance exposure when riding through areas with strong sunlight, deep shadows or changing lighting conditions.
Electronic Image Stabilisation (EIS) helps compensate for camera movement, an especially useful feature on motorcycles where engine vibration and uneven road surfaces can affect video stability.
Rear Camera – Protection from Behind
The second camera was installed to capture activity behind the motorcycle.
Rear-facing video coverage is particularly important for motorcyclists because not every incident begins in front of the rider.
Vehicles following too closely, rear-end collisions and dangerous overtaking manoeuvres can happen outside the rider's direct field of vision.
By recording both directions simultaneously, the KENWOOD system provides a more complete record of the riding environment.
Both cameras offer the same Full HD recording resolution and wide-angle coverage, ensuring the rear view receives the same attention as the front.
Dedicated Emergency Recording Button – Capture the Important Moments
One of the most practical features of the KENWOOD STZ-RF200WD is its dedicated manual recording button.
During normal operation, the system continuously records footage to a microSD memory card.
However, if the rider witnesses a dangerous situation, experiences an unexpected incident or simply wants to capture a particular moment, pressing the button initiates a separate manual recording.
Manual recordings are organised separately from standard continuous footage, allowing important moments to be identified more easily when reviewing files.
The recording system also incorporates a three-axis G-sensor capable of detecting sudden forces and automatically triggering event recording.
According to KENWOOD, an impact-triggered event recording captures approximately 10 seconds before the detected event and five seconds afterwards.
This combination of continuous recording, automatic event detection and manual activation gives the rider additional control over how important events are documented.
It is an excellent example of how a small electronic upgrade can make a meaningful difference to the ownership experience.
Professional Motorcycle Installation – Keeping the Original Harley-Davidson Look
Installing electronic equipment on a Harley-Davidson Forty-Eight requires particular care.
Unlike modern touring motorcycles with large fairings and dedicated accessory compartments, the Forty-Eight has a stripped-back design.
That minimalist appearance is part of the motorcycle's identity and something we wanted to preserve.
Our installation involved integrating the front and rear camera system with careful attention to component positioning, secure mounting and cable routing.
Camera Positioning
The position of each camera is essential for achieving useful footage.
The front camera needs an unobstructed view of the road ahead, while the rear camera must be positioned to capture approaching traffic without unnecessary obstruction from the motorcycle's bodywork.
Camera alignment is especially important when working with ultra-wide-angle lenses.
Electrical Integration
Motorcycle electronics must be installed with a clear understanding of the electrical system, accessory power supply and the operating requirements of the equipment.
The KENWOOD STZ-RF200WD is designed for 12V electrical systems, making correct power integration an important part of the installation process.
Proper cable routing and secure connections also help minimise the effects of movement, vibration and exposure to the elements.
Preserving the Motorcycle's Design
At MC Audio Sydney, we believe technology should complement a vehicle rather than compromise its appearance.
For a motorcycle as distinctive as the Harley-Davidson Forty-Eight, that means prioritising compact components, discreet installation and professional workmanship.
The finished upgrade provides modern recording functionality while respecting the classic Harley-Davidson aesthetic.
Built for Australian Riding Conditions
Australian motorcyclists regularly encounter changing weather, strong sunlight, vibration and demanding road conditions.
The KENWOOD STZ-RF200WD was engineered with motorsports environments in mind.
Its front and rear cameras feature IP66/IP67 dust and water resistance ratings, while the separate main recording unit is rated IP55.
The GPS antenna and control switch are also rated IP66/IP67.
This construction is designed to make the system suitable for outdoor vehicle applications, provided each component is installed according to its environmental protection requirements.
The camera system is specified for operation in temperatures ranging from -20°C to +60°C, adding further versatility for Australian riding conditions.
GPS Recording, Smartphone Connectivity and Video Playback
Beyond capturing video, the KENWOOD system includes GPS and GLONASS positioning technology.
This allows supported recordings to include useful journey information such as location, speed, date and time.
The KENWOOD Motorsports CAM app can be used to review recorded footage, adjust settings and download files to a compatible smartphone.
The system supports microSD memory cards from 16GB to 256GB and uses continuous loop recording, automatically overwriting older footage as storage space is filled.
For riders, this means recording can continue without constantly managing memory card space, although important files should be downloaded and backed up promptly.
KENWOOD STZ-RF200WD Technical Specifications
| Feature | Specification |
|---|---|
| System | KENWOOD STZ-RF200WD Motorsports CAM |
| Camera configuration | Front and rear |
| Video resolution | Full HD 1920 × 1080 per camera |
| Image sensors | 2 megapixels |
| Field of view | 195° diagonal per camera |
| Frame rate | 27.5 fps |
| HDR | Yes |
| Electronic Image Stabilisation | Yes |
| GPS / GLONASS | Yes |
| Impact detection | Three-axis G-sensor |
| Recording modes | Continuous, event and manual |
| Emergency recording switch | Dedicated wired control |
| Camera protection | IP66/IP67 |
| Main recorder protection | IP55 |
| Smartphone connectivity | KENWOOD Motorsports CAM app |
| Memory support | microSD 16GB–256GB |
| Power supply | 12V DC |
| Operating temperature | -20°C to +60°C |
Why Professional Motorcycle Dashcam Installation Matters
A motorcycle dashcam might look like a relatively simple accessory, but the quality of the installation directly affects its reliability.
Incorrect camera placement can reduce visibility. Poor wiring practices can introduce electrical problems. Loose mounting components can create unwanted movement, and inadequate protection can leave connections vulnerable to water and vibration.
Professional installation requires more than simply connecting power and attaching two cameras.
At MC Audio Sydney, our background in automotive electronics, mechatronics engineering and advanced vehicle integration allows us to approach motorcycle electronics with the same technical discipline used in our premium automotive projects.
Whether we are upgrading the sound system in a Porsche, integrating Apple CarPlay into a luxury vehicle or installing a motorcycle camera system, the philosophy remains the same:
Respect the vehicle. Preserve its character. Integrate technology properly.
The Final Result – Classic Harley-Davidson Style, Modern Recording Technology
This Harley-Davidson Forty-Eight now benefits from a front and rear camera system designed to document every journey.
With simultaneous Full HD recording, wide-angle coverage, built-in stabilisation, GPS tracking, impact detection and a dedicated manual recording button, the motorcycle gains a practical layer of technology without losing the visual identity that makes it special.
It is a relatively subtle upgrade, but one that can prove valuable when something unexpected happens on the road.
For us, this project demonstrates that modern automotive technology is not limited to cars.
Even a classic-style motorcycle can benefit from sophisticated electronics when the installation is approached with the right expertise.
