Overview

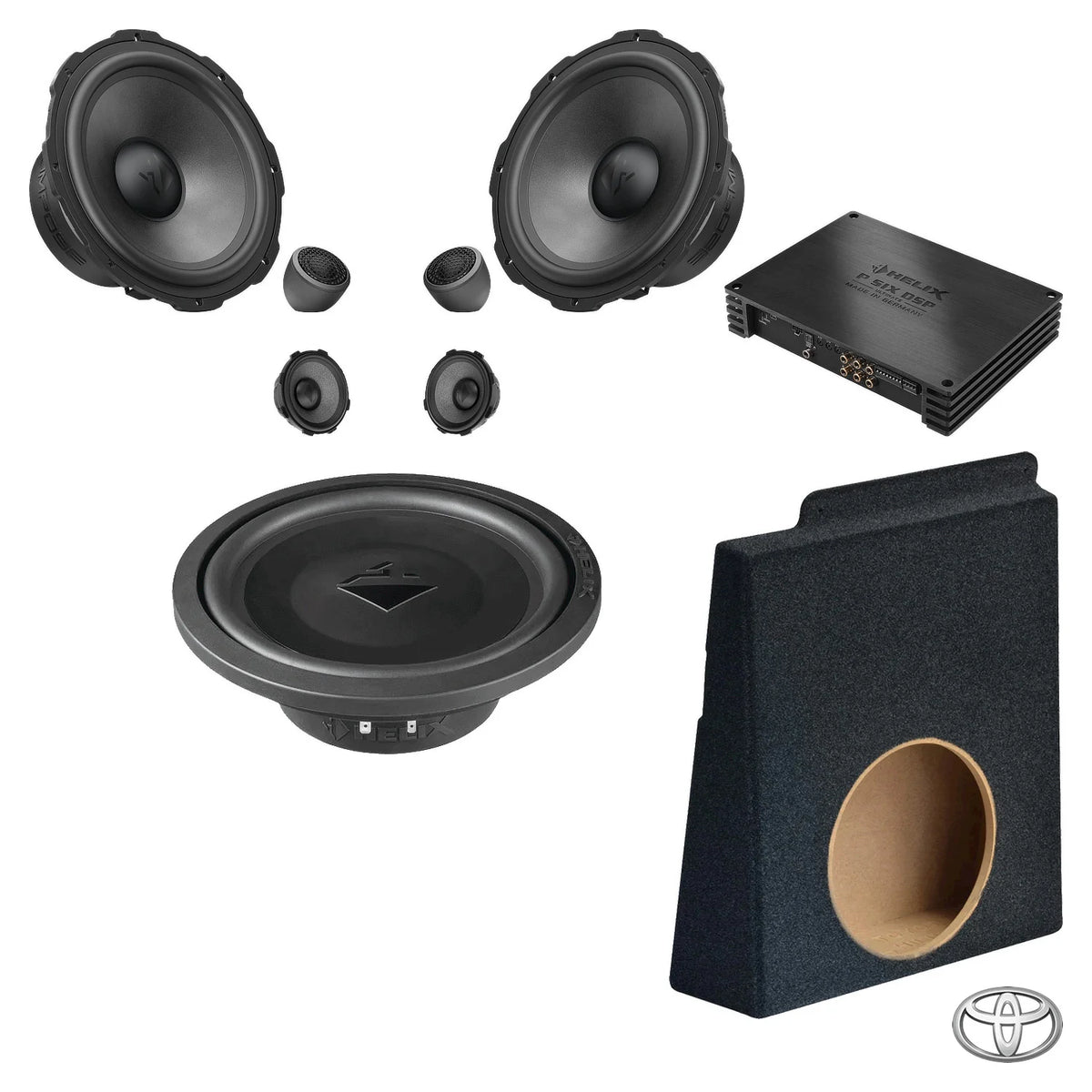

The Toyota Hilux N80 - S/PDIF Interface + DSP Amp & Front Speaker & Subwoofer Package | HELIX Ci7 is a premium vehicle-specific audio upgrade combining a HELIX COMPOSE Ci7 3-way front stage, fitted subwoofer system, DSP amplification and dedicated S/PDIF digital-audio integration. The exact Product Parameters classify the package as 165mm | 6.5", Component | 3-Way, Built-in DSP: Yes, Unit Type: Enclosure | Loaded, Car Specific: Toyota and Package Variation: With S/PDIF Interface.

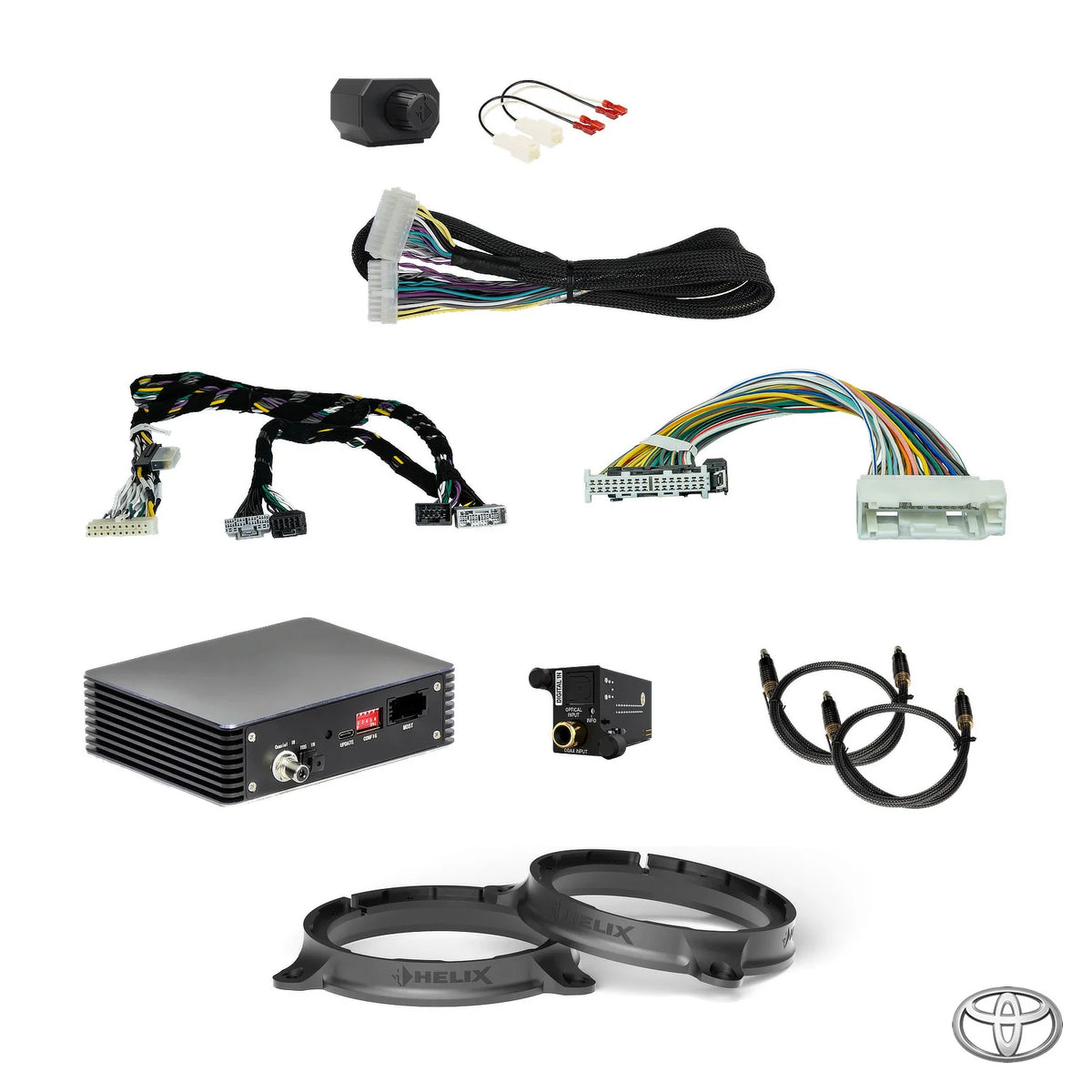

The front stage includes FlexMount tweeters, midrange speakers and woofers, while the bass system includes a vehicle-fit enclosure, subwoofer driver and remote control. The package also lists 2 × FlexMount speaker adapters, 2 × speaker connectors, an EWAY Tech converter with TOSLINK connection and an Extension Card 2.0 DIGITAL IN.
Official package imagery shows a HELIX P SIX DSP ULTIMATE amplifier as part of the system, providing premium amplification and integrated DSP processing for the front-stage and system integration.
Key Benefits
- Vehicle-specific upgrade for Toyota Hilux N80
- Premium HELIX Ci7 / COMPOSE front speaker system
- 3-way front-stage configuration
- Front FlexMount tweeters
- Front FlexMount midrange speakers
- Front FlexMount woofers
- Vehicle-fit loaded subwoofer enclosure
- Subwoofer driver included
- HELIX P SIX DSP ULTIMATE shown in official package media
- Integrated DSP processing
- S/PDIF digital-audio integration
- EWAY Tech converter with TOSLINK connection
- Extension Card 2.0 DIGITAL IN
- Subwoofer remote control
- 2 × FlexMount speaker adapters
- 2 × speaker connectors
- No rear replacement speakers included in this package
Please Read Before Purchasing
The exact supplier data contains an important inconsistency that should be preserved rather than silently corrected.
The Product Parameters specify Built-in DSP: Yes, and the official package image clearly shows a HELIX P SIX DSP ULTIMATE. However, the written “It contains” list describes a “1ch mono subwoofer-amplifier” rather than explicitly naming the DSP amplifier. Both pieces of source information are therefore presented separately.
The supplier also states that these Plug & Play upgrade packages are primarily intended for dealer use and professional installation. They are designed for specific vehicles, are mostly Plug & Play in design, and HELIX packages typically require advanced tuning skills to achieve their full potential. Minor modifications may also be needed depending on the vehicle’s exact year and trim.
Who This Package Is For
This package is suited to compatible Toyota Hilux N80 owners wanting a premium front-stage and subwoofer upgrade with DSP control and a dedicated digital S/PDIF signal path.
Unlike the full Ci7 system package, this version focuses on the front speaker stage + subwoofer system and does not list rear replacement speakers.
Installation & Tuning Notes
The exact published Upgrade Method is:
No factory amplifier -> new amplifier integration.
Digital integration is handled through:
- EWAY Tech converter RAM-based systems with TOSLINK cabel
- Extension Card 2.0 DIGITAL IN
The Extension Card 2.0 DIGITAL IN adds both optical and coaxial S/PDIF inputs. The optical input supports 28–96 kHz, while the coaxial input supports 28–192 kHz, with source assignment configurable through DSP PC-Tool.
Professional DSP calibration is recommended to configure crossover points, equalisation, time alignment, channel levels and subwoofer integration.
Professional Installation at MC Audio Sydney
Professional installation and DSP tuning are available through MC Audio Sydney. Customers can purchase this package online and contact our Sydney workshop for a complete installation and tuning quote.
📦 Available online from MC Audio Sydney. Genuine components supplied by a professional car audio integration specialist, with expert installation services in Sydney and Australia-wide shipping available.
