Premium sound upgrade for complex multi-channel OEM systems

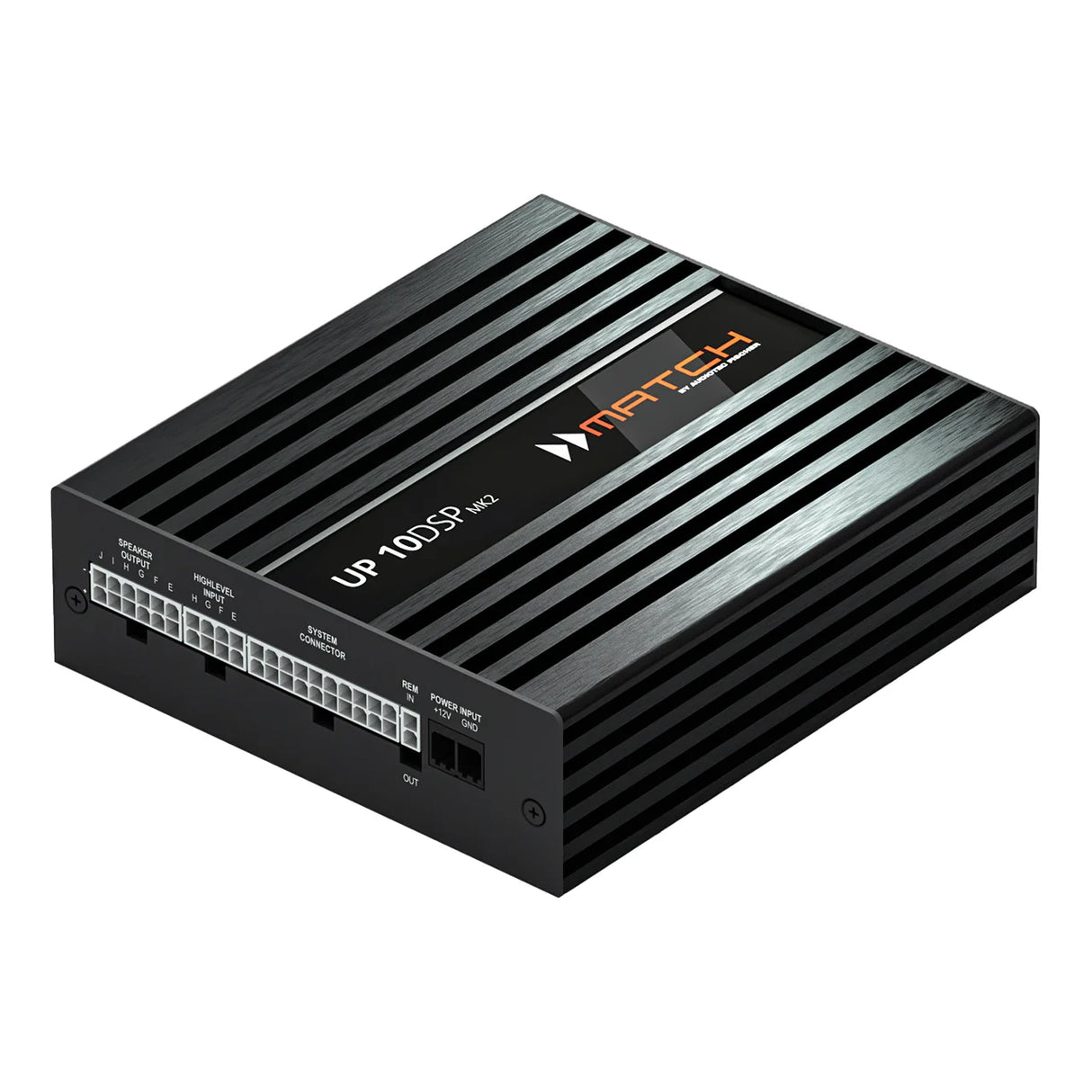

The MATCH UP 10DSP MK2 is the ideal solution for high-quality sound upgrades in modern vehicles with multi-channel factory sound systems. It combines a powerful 10-channel amplifier with an integrated 11-channel DSP, enabling a clearly improved sound experience while maintaining a clean and discrete integration in the vehicle. As an updated MK2 model, it also adds current features such as a USB-C connection and an Extension Card 2.0 slot. This keeps the system up to date and allows flexible expansion when required. Overall, the MATCH UP 10DSP MK2 forms the perfect foundation for a modern premium sound system – powerful, versatile, and precisely aligned with the requirements of today’s vehicle architectures.
Maximum connectivity and performance in a compact format

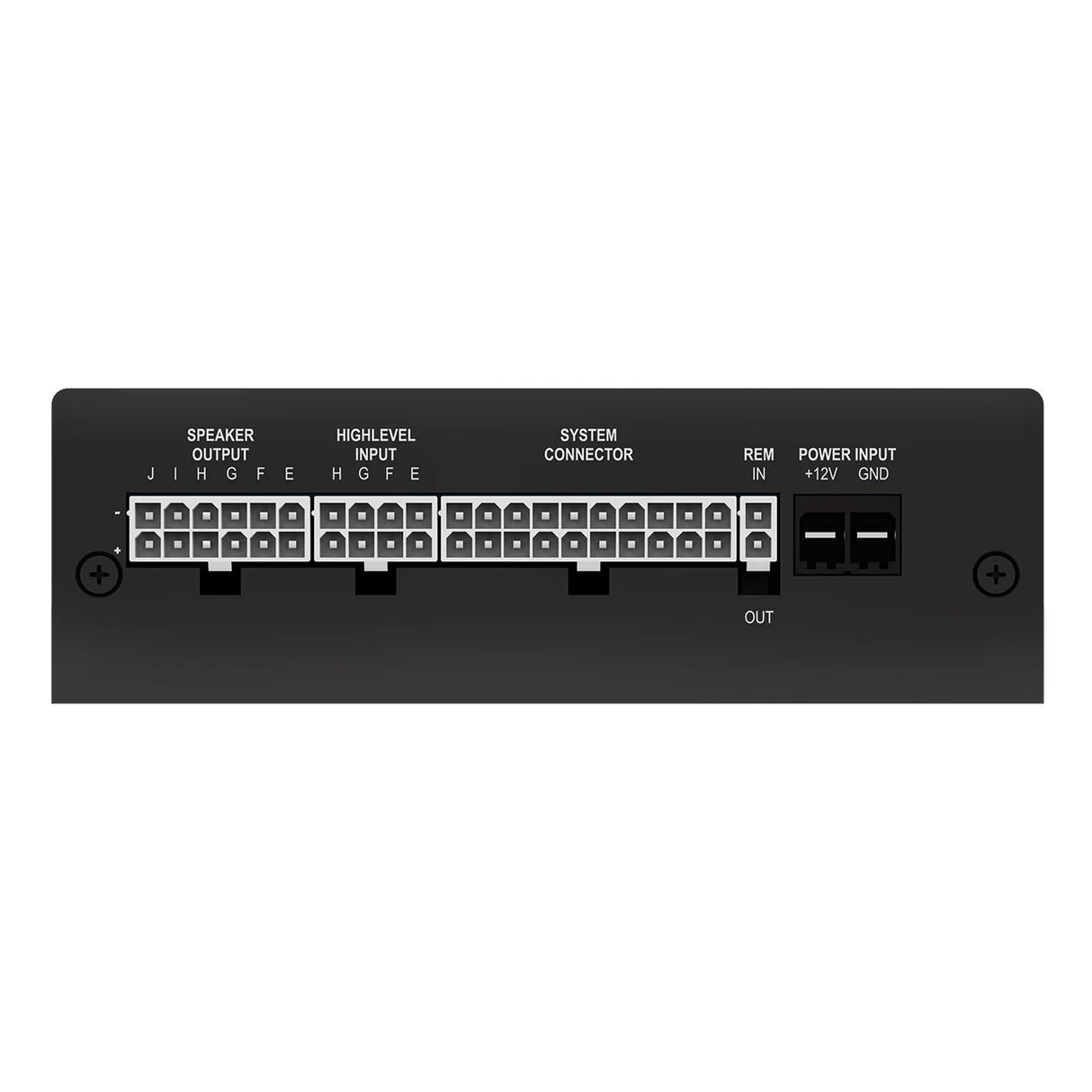

For easy integration into existing multi-channel factory sound systems, the UP 10DSP MK2 features eight highlevel inputs. With the optional Extension Card 2.0 – ANALOG IN module, this can be expanded to up to ten inputs, enabling direct 1:1 signal routing even in complex OEM setups. The signals can be tapped conveniently at the speaker outputs of the factory amplifier. Additonally, two inputs are designed for up to 32 V, making them well suited for integrating high-power OEM amplifiers, and an optical digital input is also available. For particularly efficient and vehicle-specific integration, optional plug & play wiring harnesses are also available, significantly reducing installation effort.
On the output side, the UP 10DSP MK2 delivers 10 amplifier channels with 8 x 65 Watts RMS @ 4 Ω as well as two powerful subwoofer outputs with up to 2 x 90 / 160 Watts RMS @ 4 / 2 Ω maximum output power and offers a total of 11 processed DSP channels for precise signal processing and flexible sound tuning.

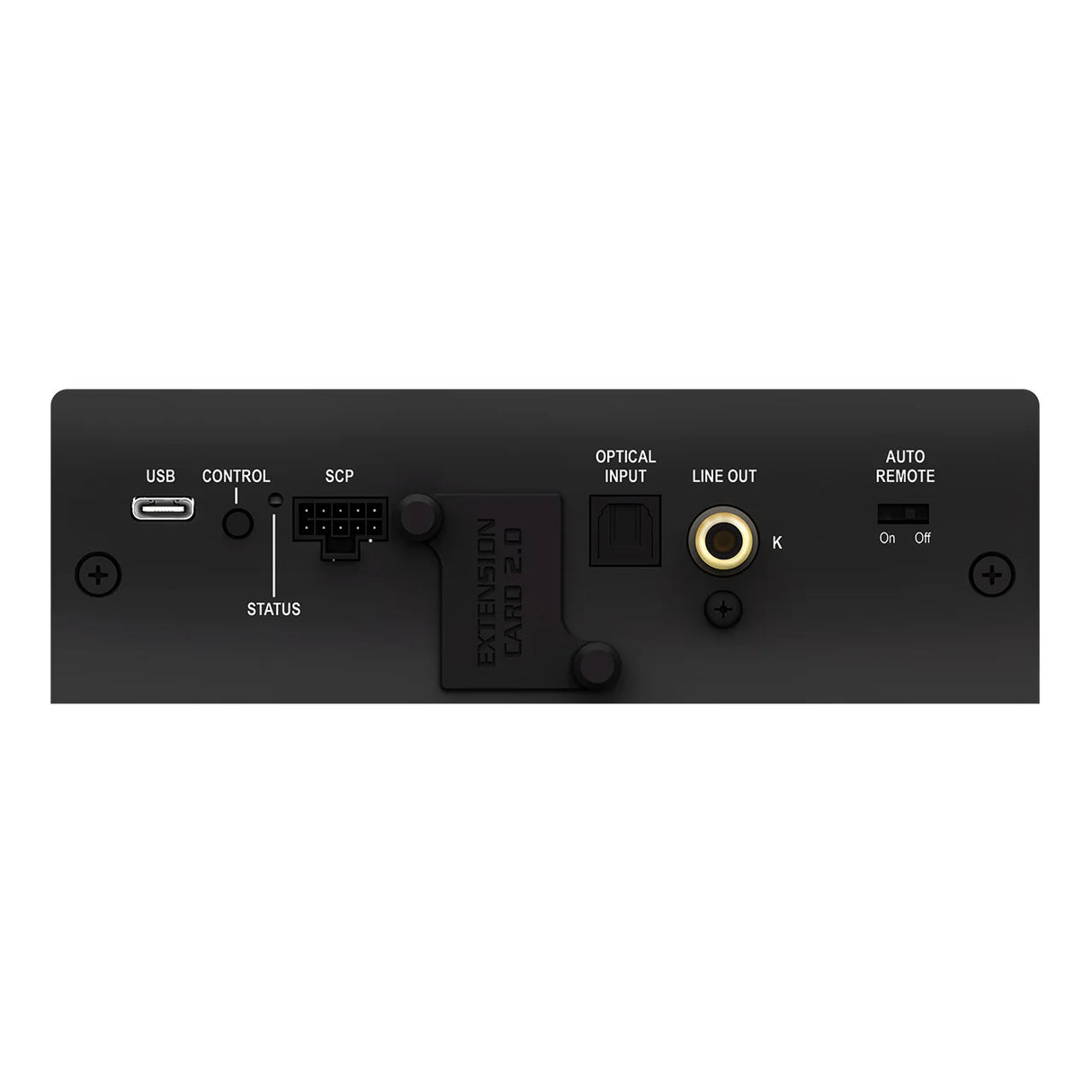

This combines performance and connectivity in a compact, space-saving design and adds further expandability in the MK2 generation: with the new Extension Card 2.0 slot, a revised expansion system with a screw-secured plastic cover and cross-series compatibility, is now included. This allows modular expansion of the system integration when required, for example with Bluetooth® HD or additional analog or digital inputs. The USB-C port also enables modern access via DSP PC-Tool.
ACO – Advanced 32 Bit CoProcessor platform
Of course, the UP 10DSP MK2 is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Advanced Input Signal Analyzer (AISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.
DSP PC-Tool 6 feat. TuneEQ – Powerful features for the ultimate sound experience
Of course, the MATCH UP 10DSP MK2 can be easily configured via our professional and exceptionally intuitive DSP PC-Tool 6. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the new, proprietary TuneEQ 2.0 as well as TuneToTarget functions for automated frequency response correction, you also save a lot of time when optimizing your sound.
Virtual Channel Processing – this is how signal routing works today
The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the UP 10DSP MK2 is also equipped with Audiotec Fischer's innovative virtual channel processing. Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. The multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features. Additionally, thanks to its generous number of channels in combination with the optional Extension Card 2.0 – ANALOG IN the UP 10DSP MK2 is also a prime example for applications where 1 to 1 routing (IOR) makes sense.
Sydney Installation + Australia-Wide Shipping
Professional installation and custom DSP tuning are available at our dedicated Sydney workshop in Rockdale. For interstate customers or specialist installers across Australia, we provide express nationwide shipping backed by expert technical and configuration support.
Compatibility Note Designed for premium multi-channel factory audio systems requiring a Plug & Play multi-channel amplifier and digital signal processor upgrade.
