Audi A5 F5 AudiSound - Speaker DSP Amlified Package | HELIX Ci3

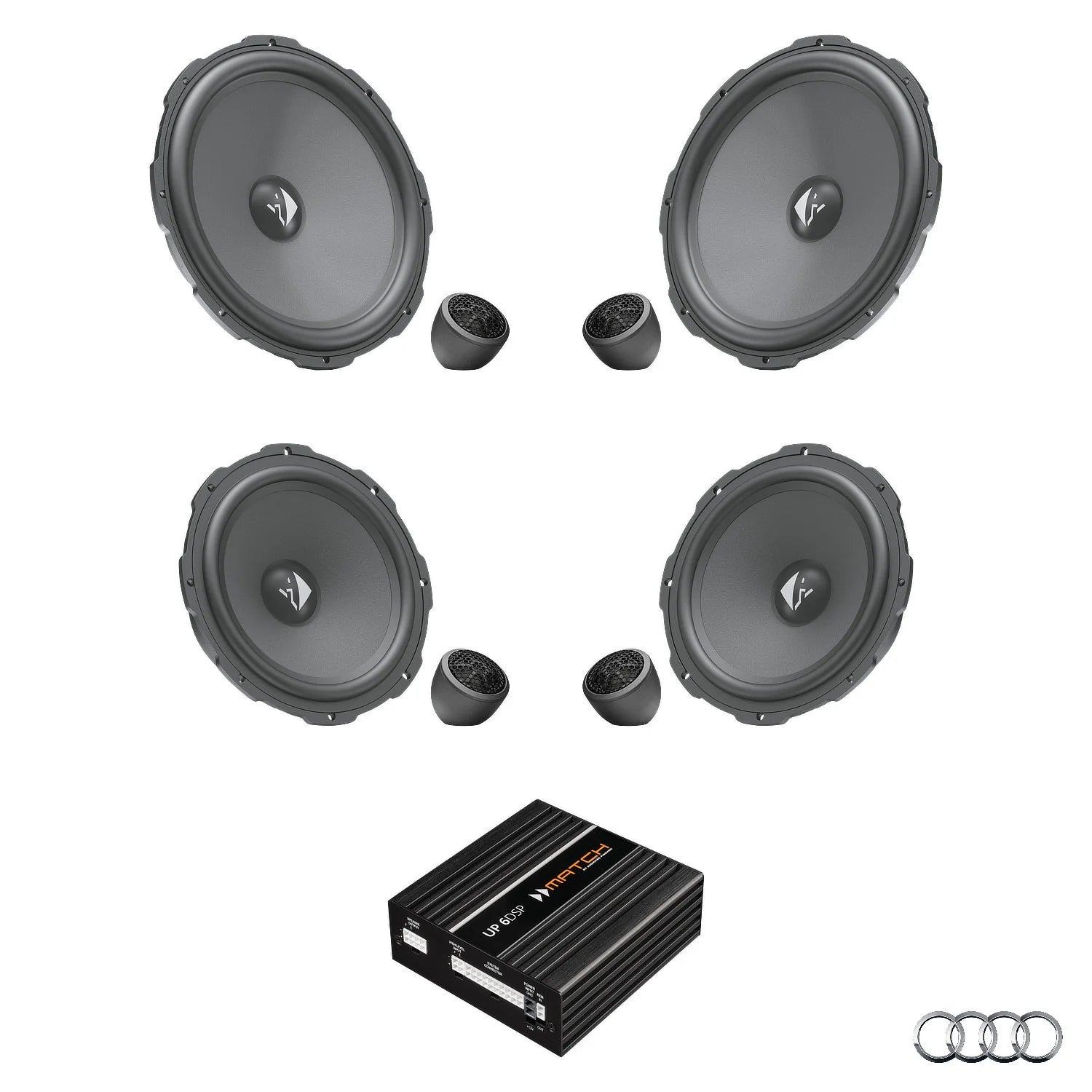

The Audi A5 F5 AudiSound - Speaker DSP Amlified Package | HELIX Ci3 is a vehicle-specific speaker and DSP amplifier upgrade combining HELIX COMPOSE Ci3 front and rear speakers with MATCH UP 6DSP amplification.

The package includes front PnP component speakers with tweeters and crossovers, a rear PnP component speaker upgrade, and the MATCH UP 6DSP, providing six amplified channels and an integrated 7-channel DSP for detailed professional acoustic calibration.

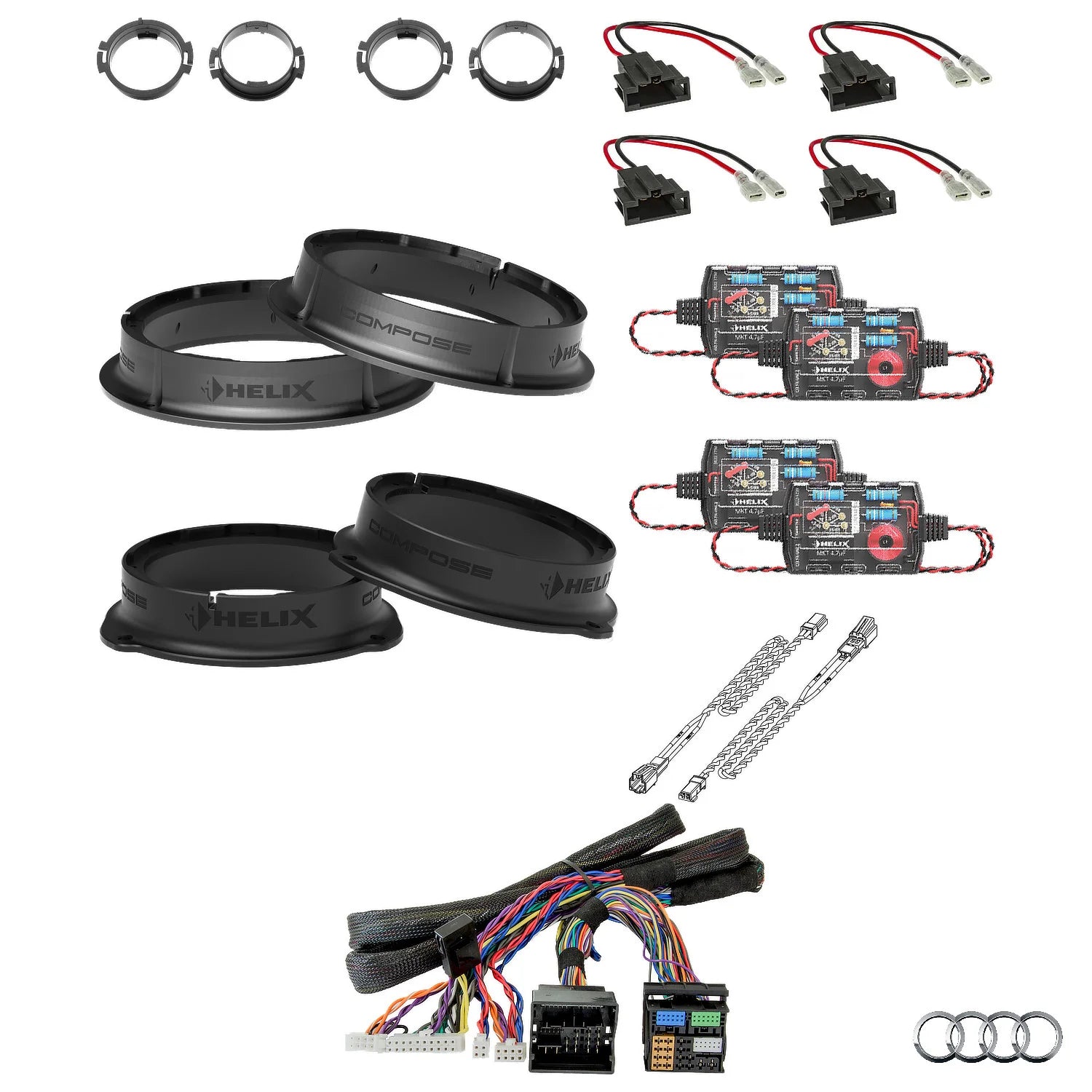

Vehicle-specific integration hardware includes a PnP radio-specific T-harness, four FlexMount speaker adapters and four FlexMount tweeter adapters.

This configuration focuses on upgrading the Audi A5 F5 AudiSound speaker system and amplification while retaining a No Subwoofer package configuration.

Key Benefits

• Vehicle-specific upgrade for Audi A5 F5 AudiSound
• HELIX COMPOSE Ci3 speaker platform
• 200 mm | 8" package classification
• Component | 2-Way configuration
• Front PnP component speaker upgrade
• Front tweeters and crossover networks included
• Rear PnP component speaker upgrade
• MATCH UP 6DSP
• 6 amplified output channels
• Integrated 7-channel DSP
• 4 × 65 W RMS @ 4Ω on channels A–D
• 2 × 90 W RMS @ 4Ω on channels E–F
• Up to 2 × 160 W RMS @ 2Ω on channels E–F
• 64-bit Audio DSP
• 295 MHz DSP processing power
• 1.2 billion MAC operations per second
• Six high-level inputs
• Optical SPDIF digital input
• ADEP.3 high-level integration
• 1:1 Input-to-Output Routing
• Virtual Channel Processing
• Input Signal Analyzer
• InputEQ
• TuneEQ
• Dynamic Loudness Control
• Remote Tone Control
• Augmented Bass Processing
• RealCenter
• Smart Control Port
• MATCH Extension Card expansion capability
• Mono processed RCA output for future system expansion
• PnP radio-specific T-harness included
• Vehicle-specific FlexMount integration hardware
• No subwoofer included

Please Read Before Purchasing
This package is designed specifically for the Audi A5 F5 AudiSound configuration.

Because the system includes multi-channel amplification and integrated digital signal processing, professional installation and DSP calibration are recommended to achieve the intended performance.

Correct DSP setup allows the upgraded speaker system to be calibrated for equalisation, crossover behaviour, time alignment, channel levels and the acoustic characteristics of the Audi A5 cabin.

This package does not include a subwoofer.

Installation and DSP tuning fees are not included in the online product price.

Who This Package Is For
This package is designed for Audi A5 F5 owners with AudiSound who want to upgrade the front and rear speakers while adding dedicated DSP amplification without installing a separate subwoofer.

It is particularly suitable for customers looking for:

• Improved front-stage clarity
• Better speaker control and dynamics
• Improved rear cabin sound
• Increased system power
• Multi-channel DSP processing
• Precise time alignment and equalisation
• Vehicle-specific system integration
• Future system expansion capability

Installation & Tuning Notes
A PnP radio-specific T-harness is included for integration with the Audi A5 F5 AudiSound system.

The exact factory amplifier retention or replacement method is not separately specified, so no additional factory-system integration method has been assumed.

The MATCH UP 6DSP provides six channels of amplification and seven DSP channels, allowing professional adjustment of:

• Equalisation
• Crossover frequencies and slopes
• Time alignment
• Channel levels
• Input signal analysis and correction
• Virtual Channel Processing
• DSP sound features

Its mono processed RCA output also provides an expansion path for an additional amplifier, such as a dedicated subwoofer amplifier, if the system is upgraded later.

Professional Installation at MC Audio Sydney
Professional installation and DSP tuning are available through MC Audio Sydney. Customers can purchase this package online and contact our Sydney workshop for a complete installation and tuning quote.
