Audi A4 B9 AudiSound - Speaker & Subwoofer DSP Amlified Package | HELIX Ci3/Ci5

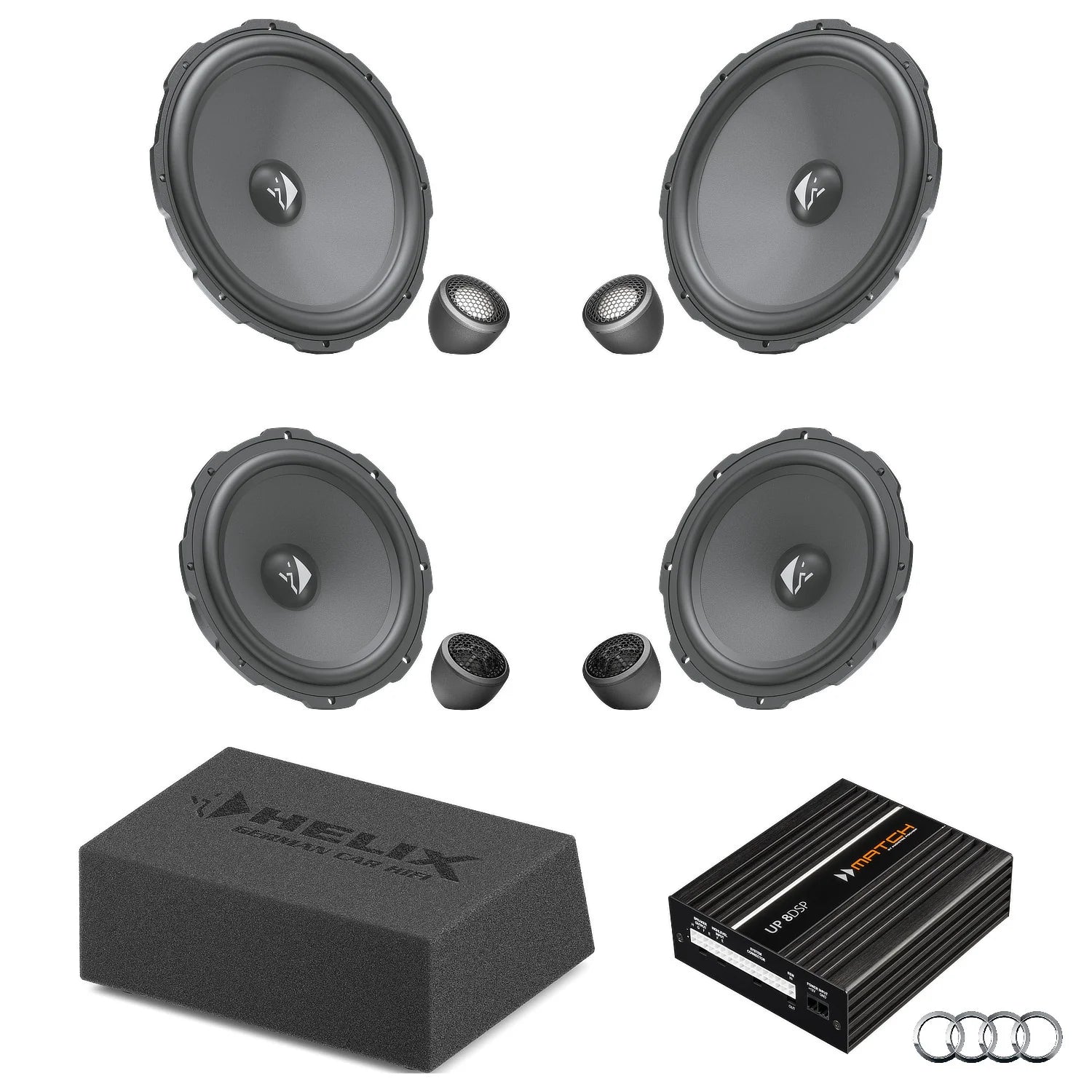

The Audi A4 B9 AudiSound - Speaker & Subwoofer DSP Amlified Package | HELIX Ci3/Ci5 is a vehicle-specific complete audio upgrade combining HELIX COMPOSE Ci3/Ci5 front and rear speakers, a loaded subwoofer enclosure and MATCH UP 8DSP amplification.

The package upgrades the front stage with two FlexMount tweeters and two FlexMount door woofers, while the rear receives its own FlexMount component speaker upgrade. A loaded subwoofer adds dedicated low-frequency reinforcement, while the MATCH UP 8DSP provides eight amplified channels and an integrated 9-channel DSP for professional system calibration.

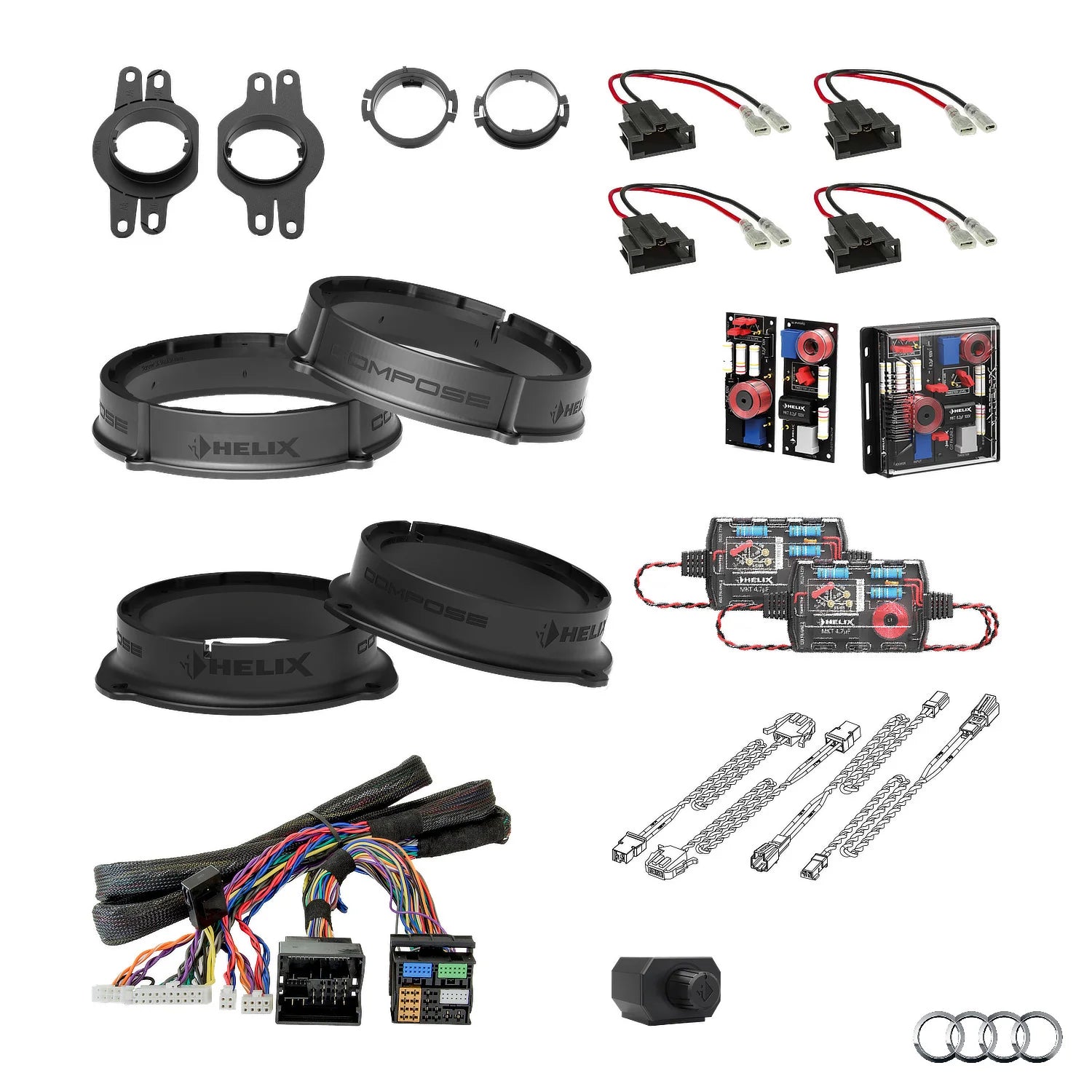

Vehicle-specific integration hardware includes a radio-specific amplifier T-harness, four crossover networks, four FlexMount speaker adapters and two FlexMount tweeter adapters.

Key Benefits

• Vehicle-specific upgrade for Audi A4 B9 AudiSound
• HELIX COMPOSE Ci3/Ci5 speaker architecture
• 200 mm | 8" package classification
• Component | 2-Way configuration
• Front FlexMount door woofers
• Front FlexMount tweeters
• Rear FlexMount component speakers
• Loaded subwoofer enclosure
• MATCH UP 8DSP
• 8 amplified output channels
• Integrated 9-channel DSP
• 6 × 65 W RMS @ 4Ω
• 2 × 90 W RMS @ 4Ω high-power channels
• Up to 2 × 160 W RMS @ 2Ω on channels G–H
• 64-bit Audio DSP
• 295 MHz DSP processing power
• 1.2 billion MAC operations per second
• Six high-level inputs
• Optical SPDIF digital input
• ADEP.3 high-level integration
• Virtual Channel Processing
• Input Signal Analyzer
• InputEQ
• TuneEQ
• Augmented Bass Processing
• RealCenter
• Smart Control Port
• MATCH Extension Card expansion capability
• Mono processed RCA output for future system expansion
• Radio-specific amplifier T-harness included
• Vehicle-specific FlexMount integration hardware

Please Read Before Purchasing
This package is designed specifically for the Audi A4 B9 AudiSound configuration and is primarily intended for professional installation.

The package is mostly Plug & Play in design, although minor modifications may still be required depending on the vehicle's exact year and trim.

Because this system includes multi-channel DSP amplification, professional calibration is strongly recommended. Correct DSP setup is important for crossover configuration, equalisation, time alignment, channel levels, phase and subwoofer integration.

Installation and DSP tuning fees are not included in the online product price.

Who This Package Is For
This package is designed for Audi A4 B9 owners with AudiSound who want a comprehensive speaker, subwoofer and DSP-amplifier upgrade rather than a basic speaker replacement.

It is particularly suitable for customers looking for:

• Improved front-stage clarity and definition
• Better midbass performance
• Upgraded rear speaker performance
• Dedicated low-frequency reinforcement
• Increased system power
• Multi-channel DSP control
• Professional acoustic calibration
• Vehicle-specific integration
• A complete front, rear and bass upgrade

Installation & Tuning Notes
A radio-specific amplifier T-harness is included for integration with the Audi A4 B9 AudiSound system.

The exact factory amplifier retention or replacement method is not separately specified, so no additional factory-system integration method has been assumed.

The MATCH UP 8DSP provides eight amplified channels and nine DSP channels, allowing professional adjustment of:

• Equalisation
• Crossover frequencies and slopes
• Time alignment
• Channel levels
• Input signal analysis and correction
• Phase relationships
• Subwoofer integration
• Virtual Channel Processing

Minor modifications may be required depending on the vehicle's exact year and trim.

Professional DSP tuning is recommended to achieve the intended performance of the complete system.

Professional Installation at MC Audio Sydney
Professional installation and DSP tuning are available through MC Audio Sydney. Customers can purchase this package online and contact our Sydney workshop for a complete installation and tuning quote.

📦 Available online from MC Audio Sydney. Genuine components supplied by a professional car audio integration specialist, with expert installation services in Sydney and Australia-wide shipping available.
