Audi A4 B9 AudiSound - Active Speaker & Subwoofer DSP Amlified Package | HELIX Ci3/Ci5

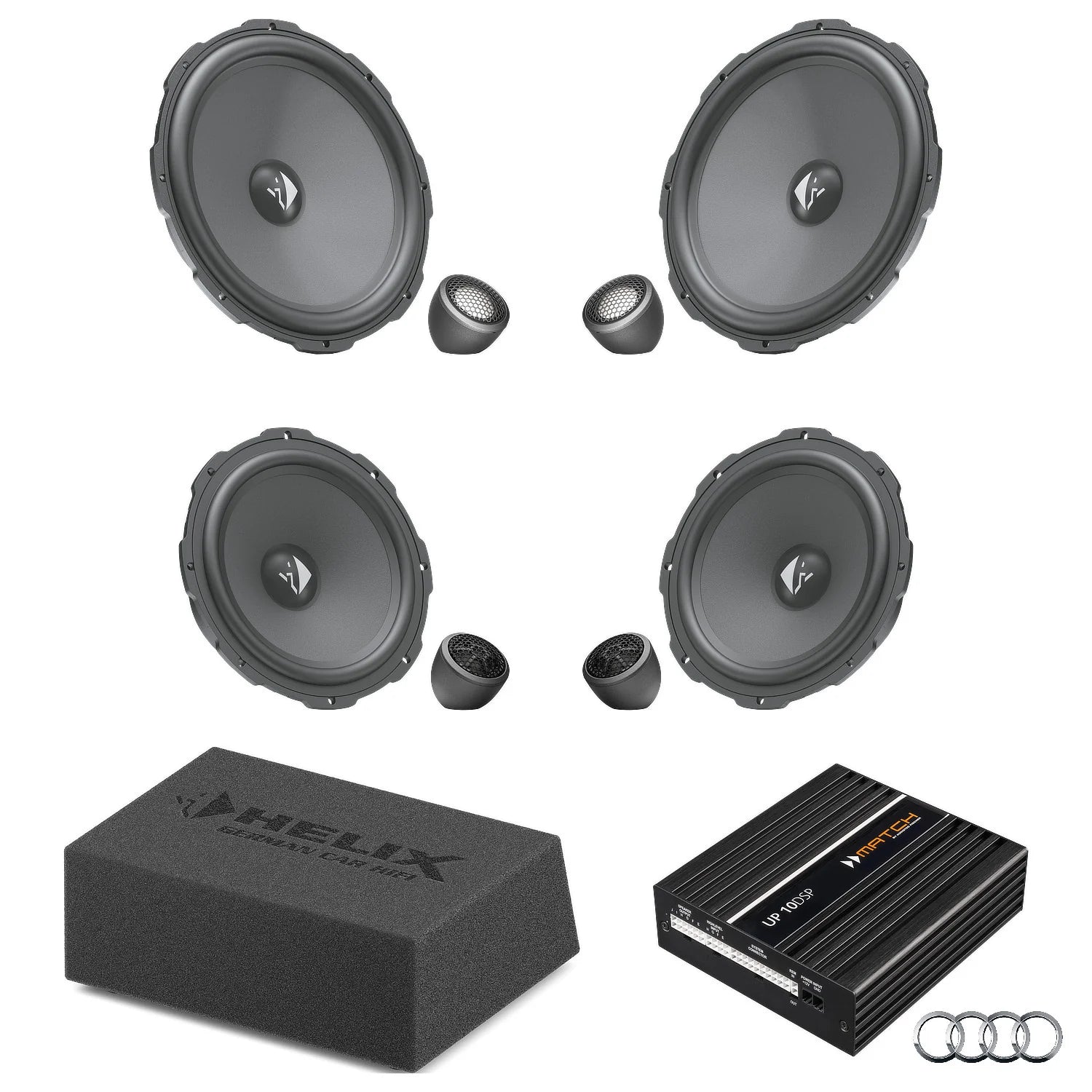

The package upgrades the front stage with dedicated FlexMount tweeters and door woofers, while the rear receives its own FlexMount component speaker upgrade. A loaded subwoofer provides dedicated low-frequency reinforcement, and the MATCH UP 10DSP provides ten amplified channels with an integrated 11-channel DSP for advanced system control and professional acoustic calibration.

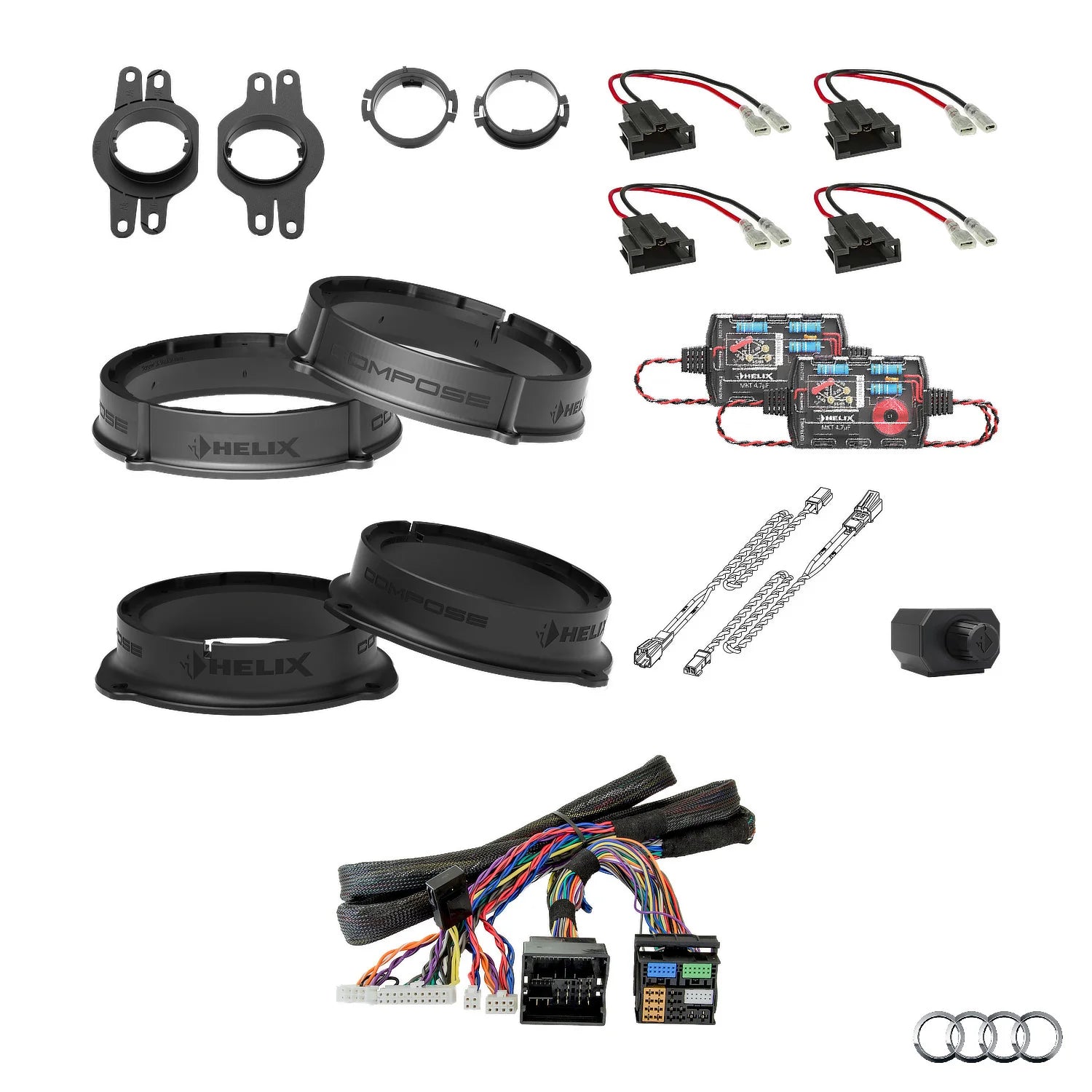

Vehicle-specific integration hardware includes a radio-specific amplifier T-harness, two crossover networks, four FlexMount speaker adapters and two FlexMount tweeter adapters.

Key Benefits

• Vehicle-specific upgrade for Audi A4 B9 AudiSound
• HELIX COMPOSE Ci3/Ci5 speaker architecture
• 200 mm | 8" package classification
• Component | 2-Way configuration
• Front FlexMount door woofers
• Front FlexMount tweeters
• Rear FlexMount component speakers
• Loaded subwoofer enclosure
• MATCH UP 10DSP
• 10 amplified output channels
• Integrated 11-channel DSP
• 8 × 65 W RMS @ 4Ω
• 2 × 90 W RMS @ 4Ω high-power channels
• Up to 2 × 160 W RMS @ 2Ω on channels I–J
• 64-bit Audio DSP
• 295 MHz DSP processing power
• 1.2 billion MAC operations per second
• 8 high-level inputs
• Two high-power inputs supporting up to 32 V
• Optical SPDIF digital input
• ADEP.3 factory-system integration
• Virtual Channel Processing
• Input Signal Analyzer
• InputEQ
• TuneEQ
• Augmented Bass Processing
• StageXpander
• RealCenter
• Smart Control Port
• MATCH Extension Card expansion capability
• Mono processed RCA output for additional system expansion
• Radio-specific amplifier T-harness included
• Vehicle-specific FlexMount integration hardware

Please Read Before Purchasing
This package is designed specifically for the Audi A4 B9 AudiSound configuration and is primarily intended for professional installation.

The system is mostly Plug & Play in design, although minor modifications may still be required depending on the vehicle's exact year and trim.

Because the package combines HELIX speakers with sophisticated multi-channel DSP amplification, professional calibration is strongly recommended. Correct setup is important for crossover configuration, equalisation, time alignment, channel levels, phase and subwoofer integration.

Installation and DSP tuning fees are not included in the online product price.

Who This Package Is For
This package is designed for Audi A4 B9 owners with AudiSound who want a comprehensive speaker, subwoofer and DSP-amplifier upgrade with an Active system configuration.

It is particularly suitable for customers looking for:

• Improved front-stage clarity and definition
• Greater control of the front speaker system
• Upgraded rear speaker performance
• Dedicated low-frequency reinforcement
• Increased system power
• Multi-channel DSP control
• Professional acoustic calibration
• Vehicle-specific integration
• A premium foundation for a complete Audi A4 sound system

Installation & Tuning Notes
The package includes a radio-specific amplifier T-harness for integration with the Audi A4 B9 AudiSound system.

The package title identifies this as an Active configuration. Two crossover networks are included, but the exact speaker-to-amplifier channel routing is not separately specified in the package information, so no unsupported active-channel allocation has been assumed.

The MATCH UP 10DSP provides ten amplified channels and eleven processed DSP channels, allowing professional adjustment of:

• Equalisation
• Active crossover configuration
• Time alignment
• Channel levels
• Input signal analysis and correction
• Subwoofer integration
• Virtual Channel Processing
• DSP sound features

Minor modifications may be required depending on the vehicle's exact year and trim.

Professional DSP tuning is recommended to achieve the intended performance of the complete system.
