Toyota Hilux N80 - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci7

Name: Toyota Hilux N80 - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci7
Brand: Mechatronicar Audio
SKU: 103133
Price: 5564.00 AUD
Availability: InStock

$5,564.00

Tax included Shipping calculated at checkout.

Pre-order now to make sure you don't miss out!

Please note this product is currently available for preorder only.

Once your order is placed, it will take 2–4 business days for the item to arrive at our Rockdale workshop before it’s ready for pickup or installation.

✅ If you leave your contact details at checkout, our team will be in touch as soon as your item is ready or to coordinate any further requirements.

We appreciate your patience and support — you're helping us bring the best products directly to you! 🙌

Subscribe to our newsletter

Get the latest updates on all our new collections, sales, offers and product arrival dates.

Toyota Hilux N80 - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci7

Overview

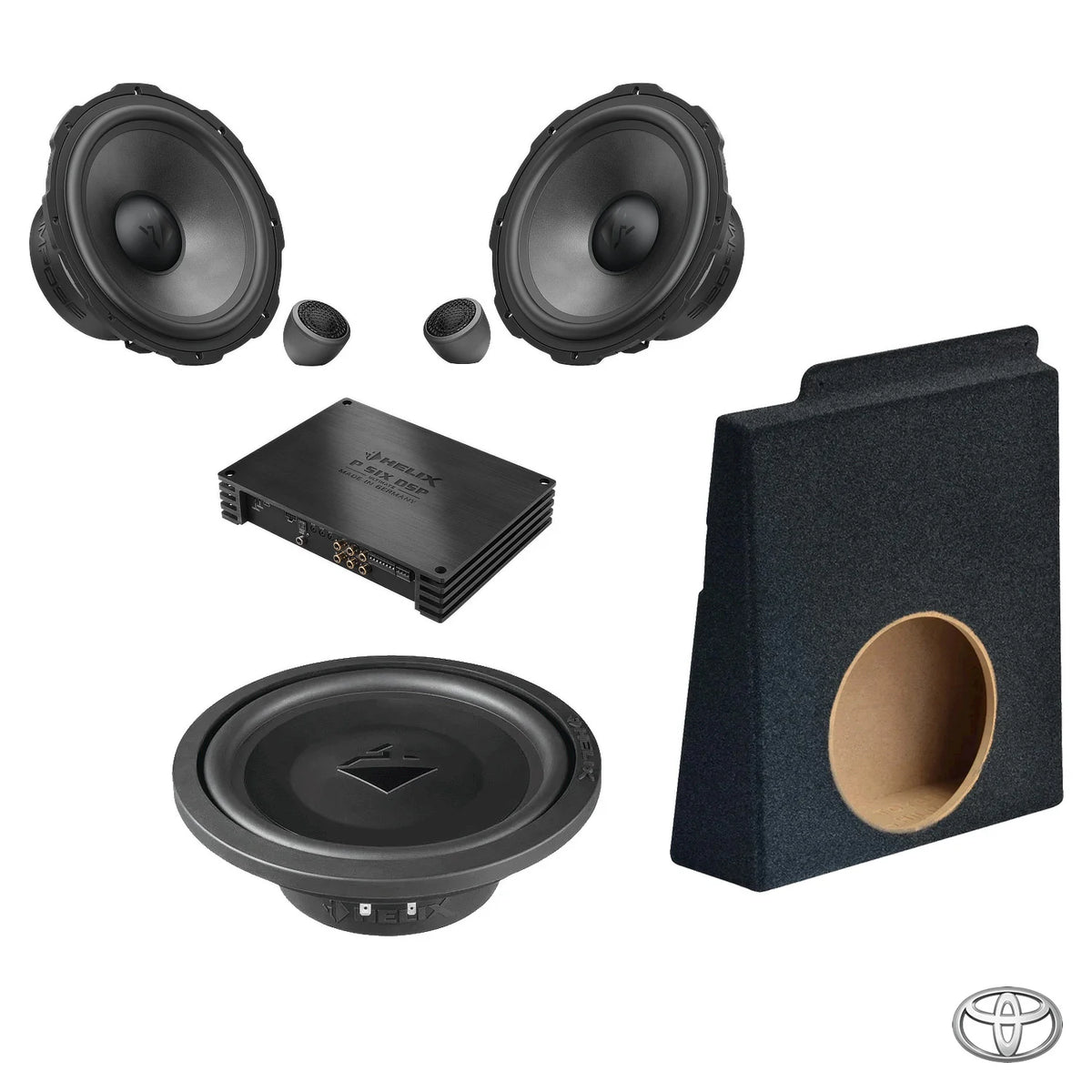

The Toyota Hilux N80 - Front Speaker & Subwoofer DSP Amplified Package | HELIX Ci7 is a vehicle-specific front-stage and bass upgrade combining HELIX COMPOSE Ci7 speakers, a fitted subwoofer system and DSP amplification. The exact Product Parameters classify the package as 165mm | 6.5", Component | 3-Way, with Built-in DSP: Yes, Unit Type: Enclosure | Loaded and Car Specific: Toyota.

The written package contents include front FlexMount component speakers with tweeters, a vehicle-fit subwoofer enclosure, subwoofer driver, 1-channel mono subwoofer amplifier, subwoofer remote control, 2 × FlexMount speaker adapters and 2 × speaker connectors. No rear replacement speakers are listed in this front-speaker version.

Official package media additionally shows a HELIX P SIX DSP ULTIMATE, vehicle integration wiring, a remote control and the supplied speaker adapters.

Key Benefits

Vehicle-specific package for Toyota Hilux N80
Premium HELIX Ci7 / COMPOSE front speaker system
Front FlexMount component speakers with tweeters
Vehicle-fit loaded subwoofer system
HELIX P SIX DSP ULTIMATE confirmed in official package media
6-channel amplifier with integrated DSP
12-channel DSP processing platform
Subwoofer remote control included
2 × FlexMount speaker adapters
2 × speaker connectors
No rear speaker replacement listed
165mm | 6.5" speaker classification
Complete front-stage, subwoofer and DSP-amplified upgrade platform

Please Read Before Purchasing
There are two important source inconsistencies on the exact bundle page.

First, the Product Parameters state Type: Component | 3-Way, but the written contents list only front FlexMount component speakers (tweeters included) and do not separately identify a midrange driver. A separate midrange speaker is therefore not inferred.

Second, the written package contents state “1ch mono subwoofer-amplifier”, while the product is classified as Built-in DSP: Yes and the official package image clearly shows a HELIX P SIX DSP ULTIMATE rather than a standalone mono amplifier. The written supplier list and the official media are therefore preserved separately rather than silently reconciled.

The exact product page does not publish a separate production-year range, SR/SR5 trim matrix, cab configuration or detailed factory-audio compatibility table beyond the Toyota Hilux N80 application in the product title.

Who This Package Is For
This package is suited to compatible Toyota Hilux N80 owners wanting to focus the upgrade on the front soundstage while also adding dedicated bass reinforcement and DSP-controlled amplification.

Unlike the full speaker package, this version does not list rear replacement speakers, making it a front-stage + subwoofer + DSP solution.

Installation & Tuning Notes
The exact published Upgrade Method is:
No factory amplifier -> new amplifier integration.

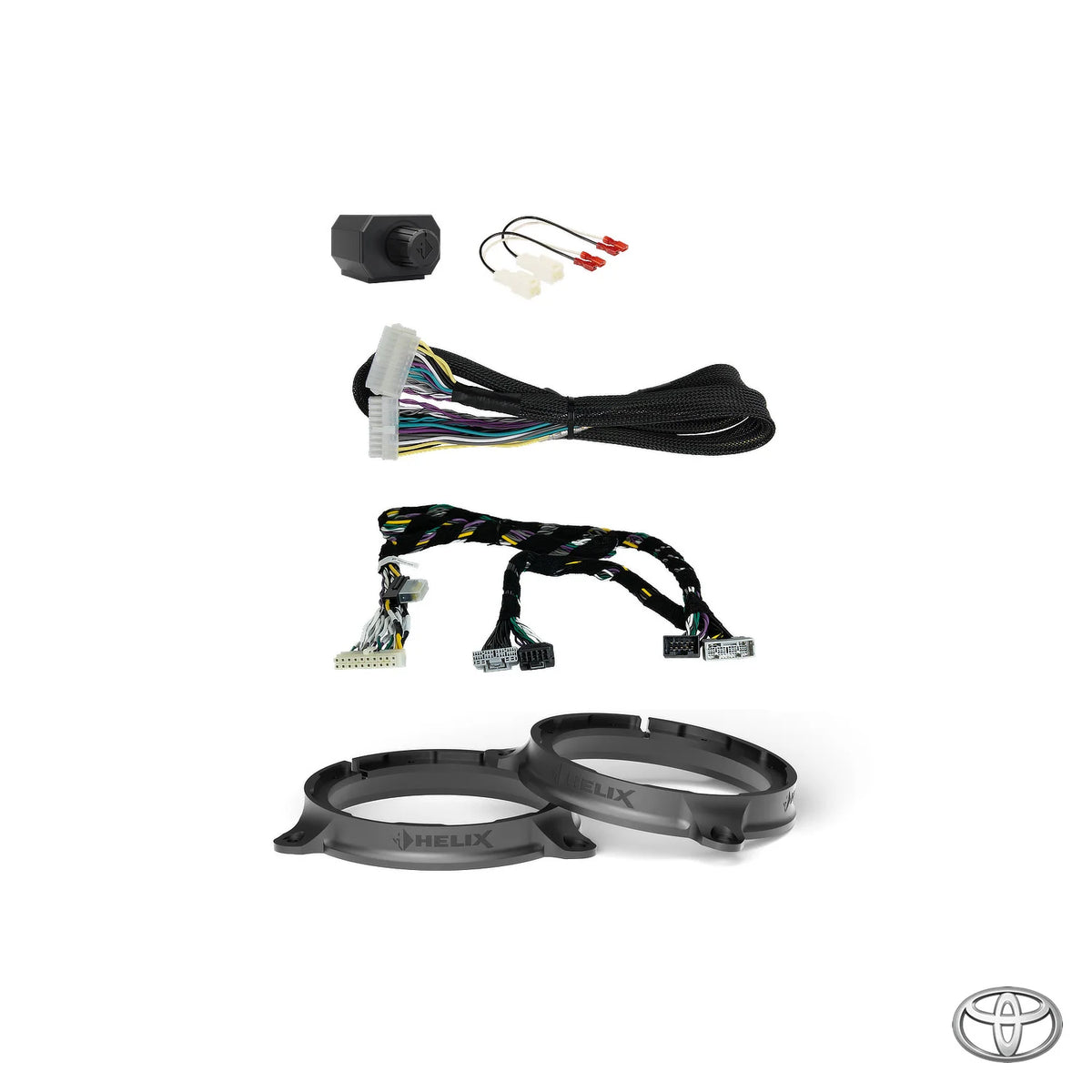

The package includes 2 × FlexMount speaker adapters and 2 × speaker connectors, while official media also shows the associated vehicle-integration wiring.

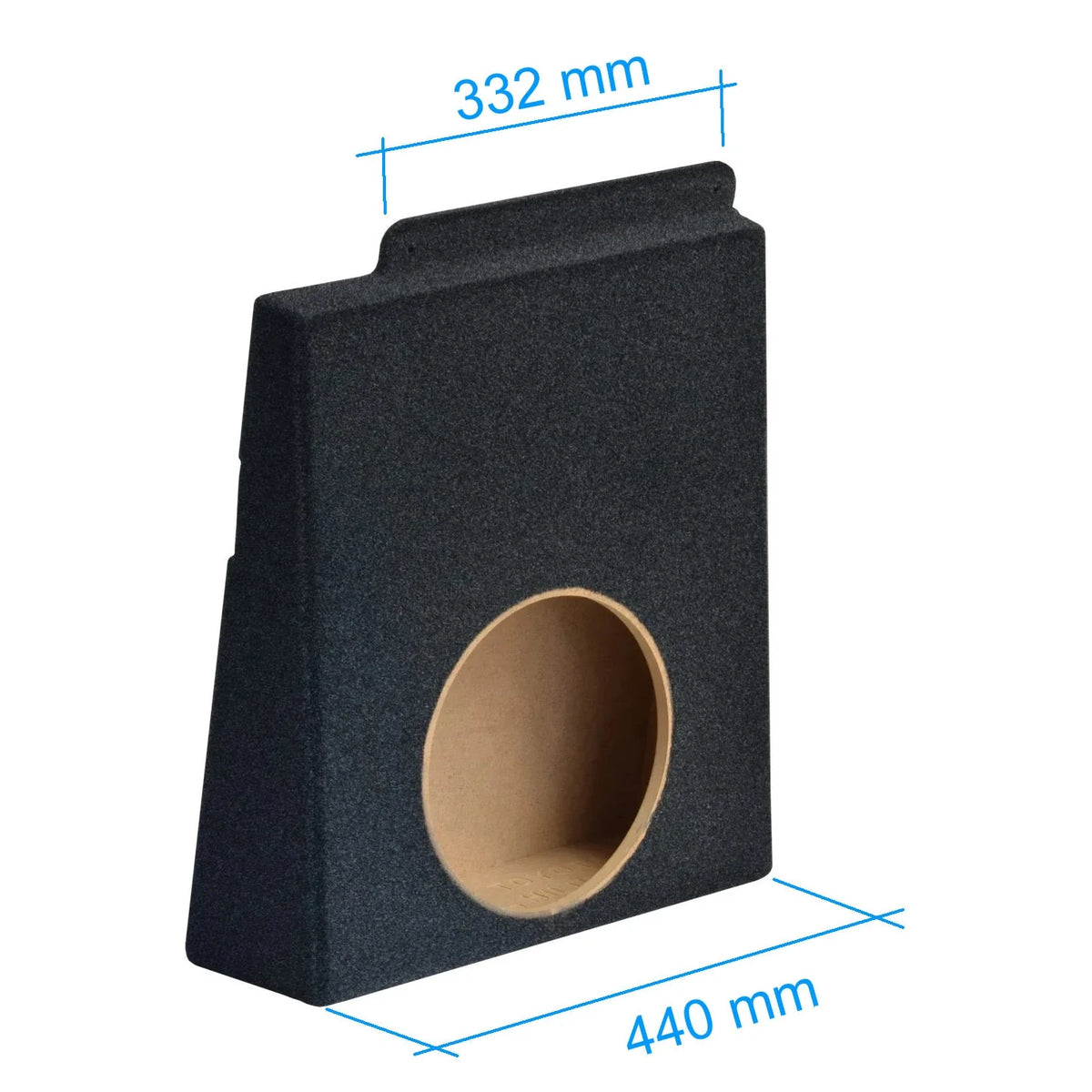

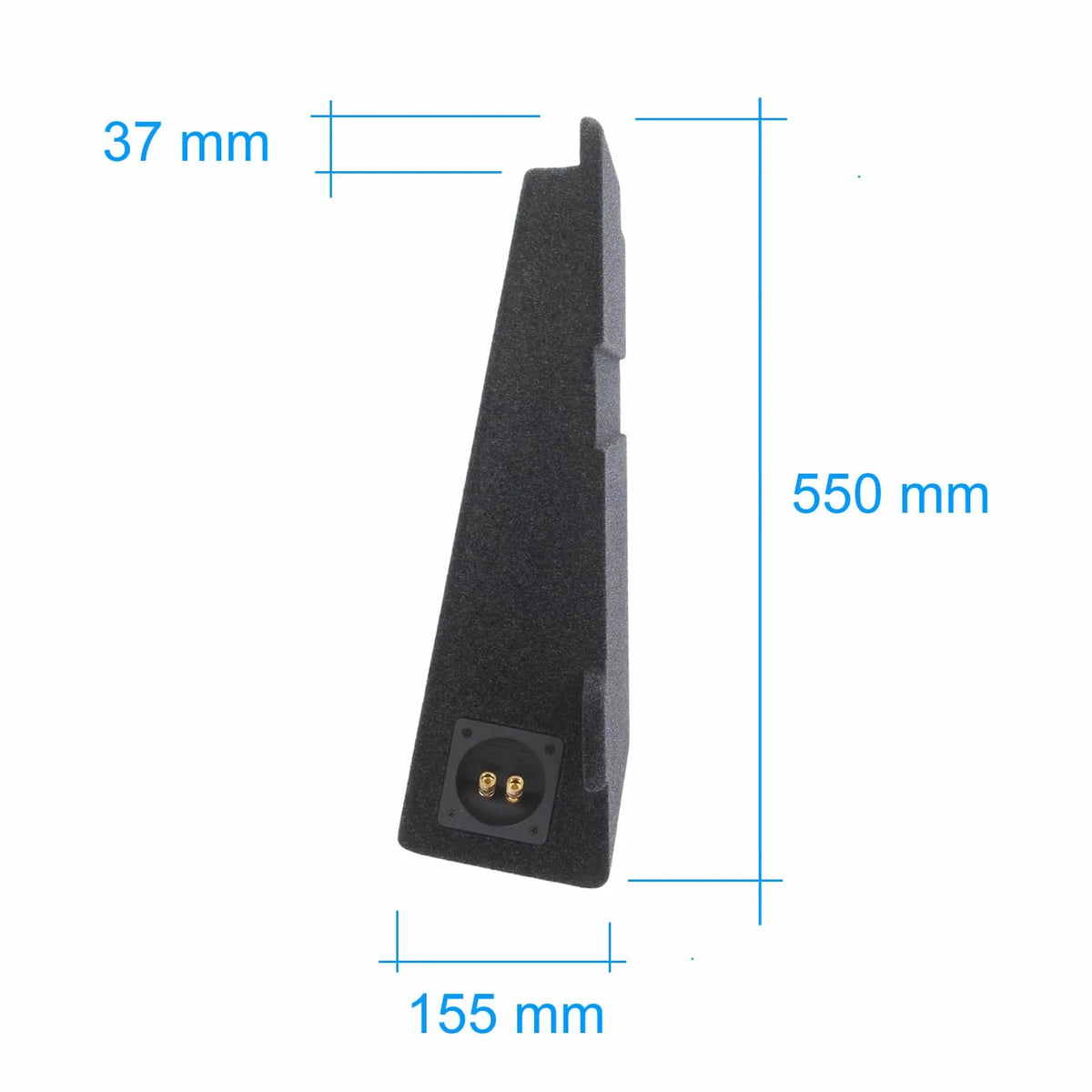

The fitted enclosure is shown with approximate external dimensions of:

Height: 550 mm
Base width: 440 mm
Upper section width: 332 mm
Lower depth: 155 mm
Upper depth: 37 mm

Professional DSP calibration allows the amplifier to be configured for crossover behaviour, equalisation, timing, output levels and subwoofer integration.

Professional Installation at MC Audio Sydney
Professional installation and DSP tuning are available through MC Audio Sydney. Customers can purchase this package online and contact our Sydney workshop for a complete installation and tuning quote.

📦 Available online from MC Audio Sydney. Genuine components supplied by a professional car audio integration specialist, with expert installation services in Sydney and Australia-wide shipping available.

Product Parameters

Size: 165mm | 6.5"
Built-in DSP: Yes
Type: Component | 3-Way
Unit Type: Enclosure | Loaded
Car Specific: Toyota

Package Contents
The exact written It contains list is:

front FlexMount component speakers (tweeters included)
subwoofer enclosure to fit
subwoofer driver
1ch mono subwoofer-amplifier
subwoofer remote control
2x FlexMount speaker adapter
2x speaker connector

Media-confirmed components: official package imagery additionally shows a HELIX P SIX DSP ULTIMATE and vehicle integration wiring. These are visible in the official package media but are not separately named in the written “It contains” list.

Individual Component Specifications

HELIX P SIX DSP ULTIMATE
The amplifier visible in the official package media matches the HELIX P SIX DSP ULTIMATE published separately by the same supplier.

Amplifier Channels: 6
Integrated DSP: Yes
DSP Processing: 12 channels
Power @ 4Ω: 6 × 120 W RMS
Power @ 2Ω: Channels C–F: 4 × 230 W RMS
Maximum Output: up to 145 W RMS @ 4Ω; up to 285 W RMS @ 2Ω on channels C–F
Amplifier Technology: Ultra HD Class D
RCA Inputs: 6
High-Level Inputs: 6
Digital Inputs: Optical SPDIF and Coaxial SPDIF
Speaker Outputs: 6
RCA Outputs: 4
Optical Digital Output: 1 × SPDIF
DSP Resolution: 64 Bit
DSP Power: 2 × 295 MHz / 2.4 billion MAC operations per second
Sampling Rate: 96 kHz
Frequency Response: 10 Hz – 44,000 Hz
Maximum High-Level Input Sensitivity: 32 V
THD: <0.004%
Operating Voltage: 10.5 – 32 V
Dimensions: 50 × 260 × 190 mm
Technologies: TwinDSP Power, Virtual Channel Processing, ACO, Input Signal Analyzer, InputEQ, TuneEQ, SFX, ADEP.3, Smart Control Port and HEC expansion slot

HELIX Ci7 Front Speaker System
The exact written bundle confirms:

front FlexMount component speakers
tweeters included
2 × FlexMount speaker adapters
2 × speaker connectors

The exact individual HELIX Ci7 speaker model numbers are not published in the bundle text, so model-specific impedance, RMS power, frequency response and driver construction specifications are intentionally not added.

Subwoofer System
The exact package confirms:

vehicle-fit subwoofer enclosure
subwoofer driver
subwoofer remote control

The exact subwoofer driver model, impedance, RMS rating and enclosure volume are not published on the bundle page, so those specifications are intentionally not inferred.

Upgrade Method
No factory amplifier -> new amplifier integration
