Audi Q3 F3 AudiSound - Active Speaker & Subwoofer DSP Amlified Package | HELIX Ci3/Ci5

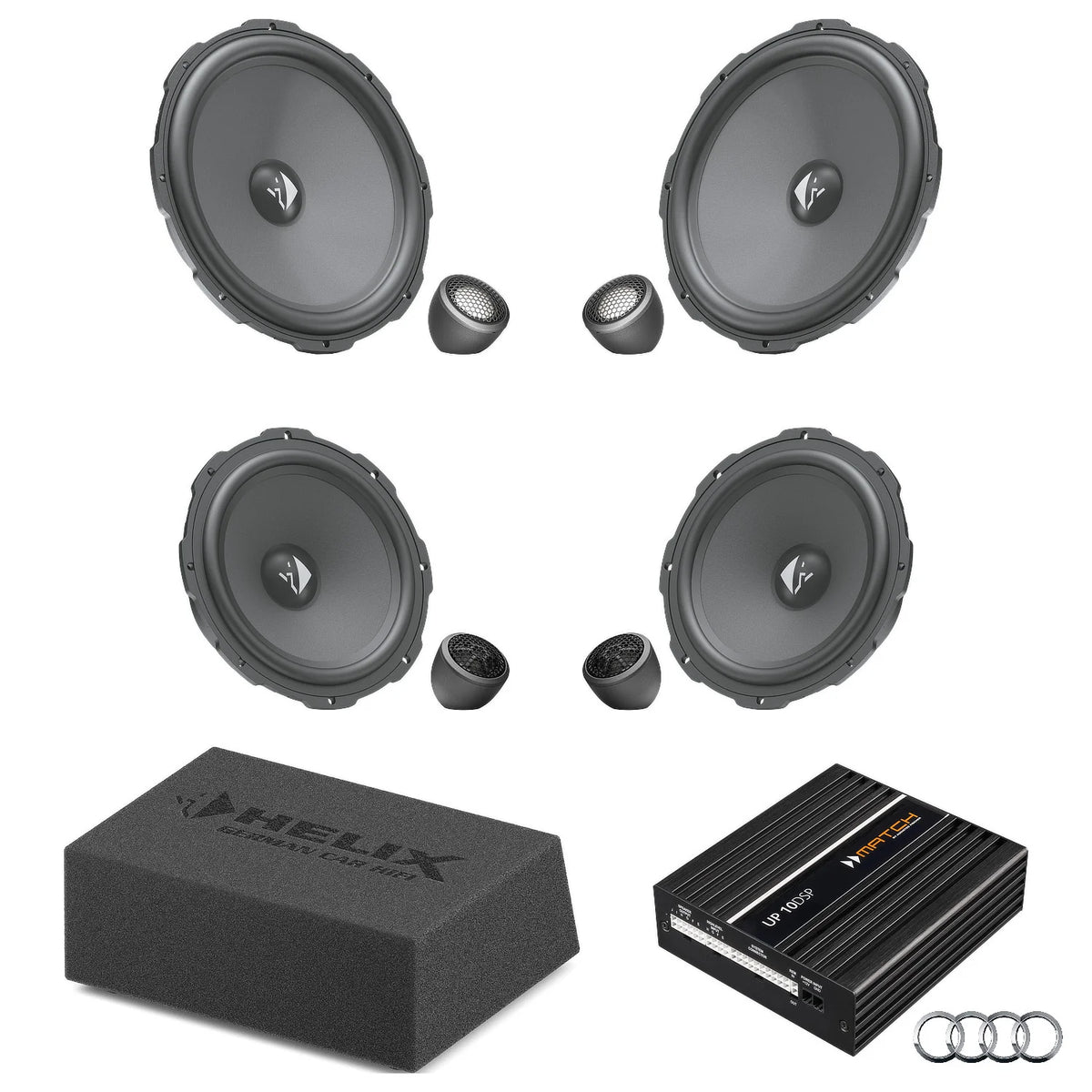

The Audi Q3 F3 AudiSound - Active Speaker & Subwoofer DSP Amlified Package | HELIX Ci3/Ci5 is a vehicle-specific complete audio upgrade combining HELIX COMPOSE Ci3/Ci5 front and rear speakers, a loaded subwoofer enclosure and MATCH UP 10DSP amplification.

The package upgrades the front stage with two FlexMount tweeters and two FlexMount door woofers, while the rear receives its own FlexMount component speaker upgrade. Dedicated low-frequency reinforcement is provided by the loaded subwoofer enclosure.

The MATCH UP 10DSP provides ten amplified channels and an integrated 11-channel DSP, creating a powerful platform for professional system calibration and control.

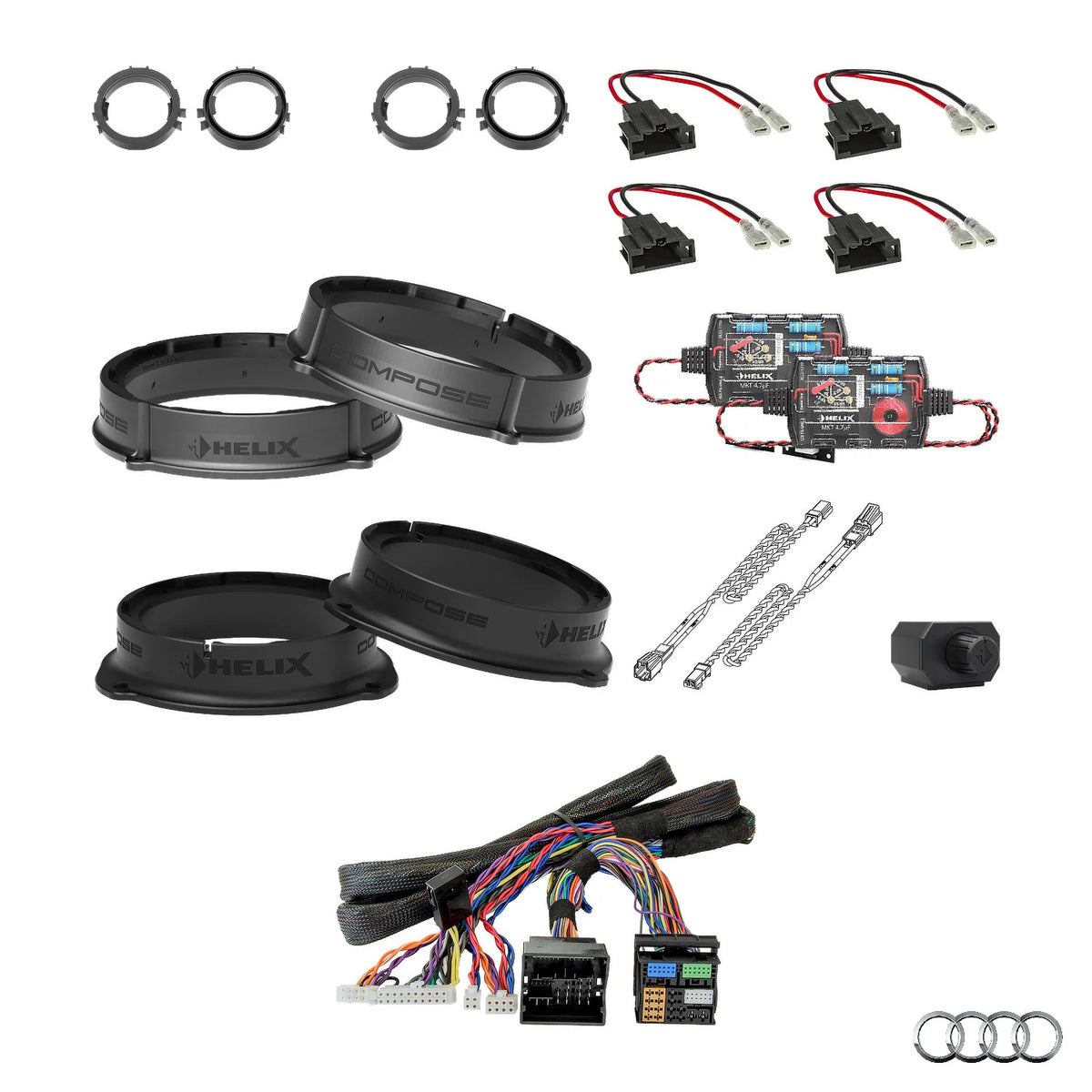

Vehicle-specific integration hardware includes a radio-specific amplifier T-harness, two crossover networks, four FlexMount speaker adapters and two FlexMount tweeter adapters.

Key Benefits

• Vehicle-specific upgrade for Audi Q3 F3 AudiSound
• HELIX COMPOSE Ci3/Ci5 speaker architecture
• 200 mm | 8" package classification
• Component | 2-Way configuration
• Active system configuration
• Front FlexMount door woofers
• Front FlexMount tweeters
• Rear FlexMount component speakers
• Loaded subwoofer enclosure
• MATCH UP 10DSP
• 10 amplified channels
• Integrated 11-channel DSP
• 8 × 65 W RMS @ 4Ω
• 2 × 90 W RMS @ 4Ω high-power channels
• Up to 2 × 160 W RMS @ 2Ω on channels I–J
• 64-bit Audio DSP
• 295 MHz DSP processing
• 1.2 billion MAC operations per second
• 8 high-level inputs
• High-voltage input capability up to 32 V on channels G–H
• Optical SPDIF digital input
• ADEP.3 high-level integration
• Virtual Channel Processing
• Input Signal Analyzer
• InputEQ
• Augmented Bass Processing
• StageXpander
• RealCenter
• Smart Control Port
• MATCH Extension Card expansion capability
• Mono processed RCA output
• Radio-specific amplifier T-harness included
• Vehicle-specific FlexMount integration hardware

Please Read Before Purchasing
This package is designed specifically for the Audi Q3 F3 AudiSound configuration.

These vehicle-specific packages are primarily intended for professional installation, although some configurations may also suit confident DIY users.

The system is mostly Plug & Play in design, but minor modifications may still be required depending on the vehicle's exact year and trim.

HELIX-based packages with DSP amplification require advanced tuning knowledge to achieve their full potential. Professional DSP calibration is therefore recommended.

Installation and DSP tuning fees are not included in the online product price.

Who This Package Is For
This package is designed for Audi Q3 F3 owners with AudiSound who want a comprehensive active speaker, subwoofer and DSP-amplifier upgrade rather than a conventional speaker replacement.

It is particularly suited to customers looking for:

• Improved front-stage clarity and definition
• Better midbass reproduction
• Greater control of the front speaker system
• Improved rear speaker performance
• Dedicated low-frequency reinforcement
• Increased system power
• Multi-channel DSP control
• Professional acoustic calibration
• Vehicle-specific integration
• A complete front, rear and bass upgrade

Installation & Tuning Notes
A radio-specific amplifier T-harness is included for integration with the Audi Q3 F3 AudiSound system.

The package is identified as an Active configuration. Two crossover networks are included, but the exact speaker-to-amplifier channel allocation is not separately specified, so no unsupported active channel routing has been assumed.

The exact factory amplifier retention or replacement method is also not separately specified.

The MATCH UP 10DSP provides ten amplified channels and eleven processed DSP channels, allowing professional adjustment of:

• Equalisation
• Active crossover configuration
• Time alignment
• Channel levels
• Input signal analysis and correction
• Phase relationships
• Subwoofer integration
• Virtual Channel Processing
• DSP sound features

Professional DSP tuning is recommended to optimise the complete system for the Audi Q3 cabin.

Professional Installation at MC Audio Sydney
Professional installation and DSP tuning are available through MC Audio Sydney. Customers can purchase this package online and contact our Sydney workshop for a complete installation and tuning quote.

📦 Available online from MC Audio Sydney. Genuine components supplied by a professional car audio integration specialist, with expert installation services in Sydney and Australia-wide shipping available.
